CNHL 2S 3S 4S 7.4V 11.1V 14.8V Lipo Battery 3200mAh 30C With XT60 Plug For RC Car Truck Tank Vehicle Airplane Helicopter Quadcopter Drone Hobby

1. 2S 7.4V 3200mah 30C XT60-Plug
Stock Number：320302BK
Capacity：3200mAh
Voltage：7.4V / 2-Cell / 2S1P
Discharge Rate：30C Continual / 60C Burst
Charge Rate：5C Max
Size(1-5mm difference)：18X43X91mm
Approx Weight(±5g)：155g

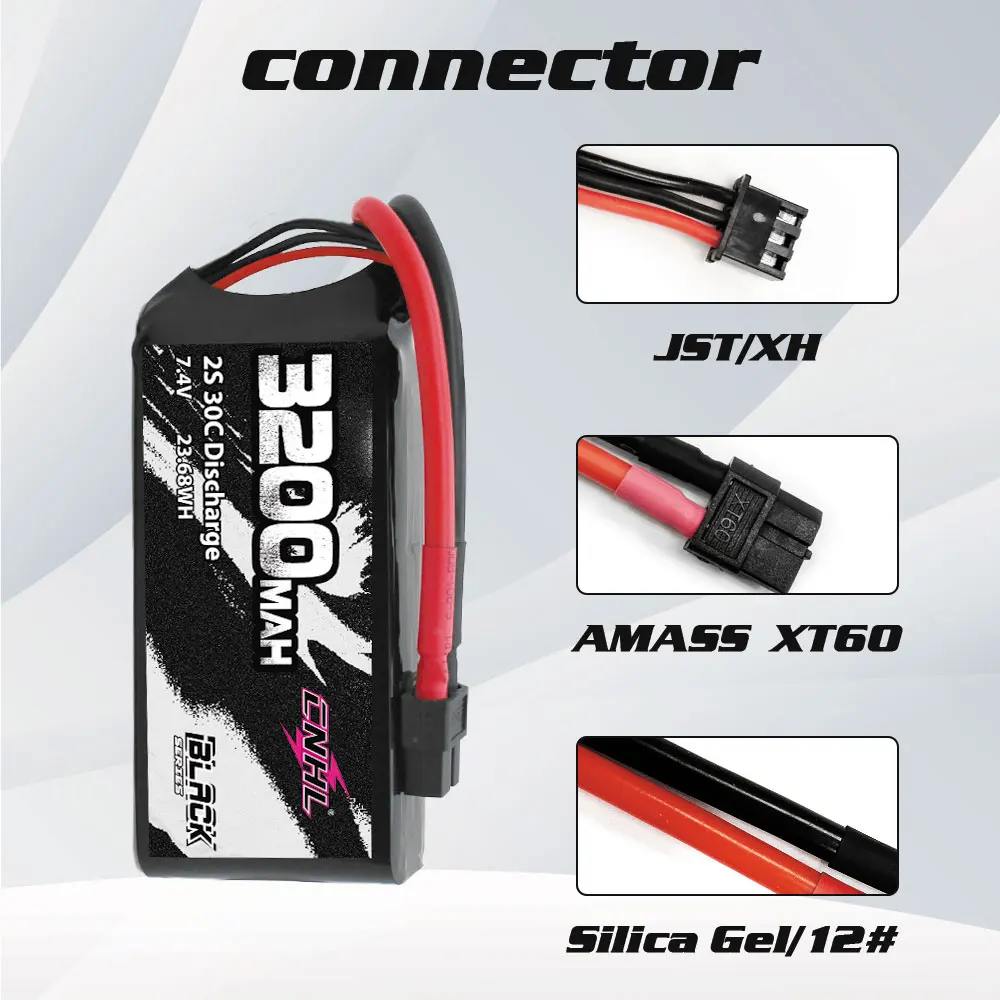

Output Connector：XT60
Balance Connector：JST / XHR
Remarks：N/A
Wire (AWG)：12#

2. 3S 11.1V 3200mah 30C XT60-Plug
Stock Number：320303BK
Capacity：3200mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：30C Continual / 60C Burst
Charge Rate：5C Max
Size：25X42X92mm
Weight：218g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

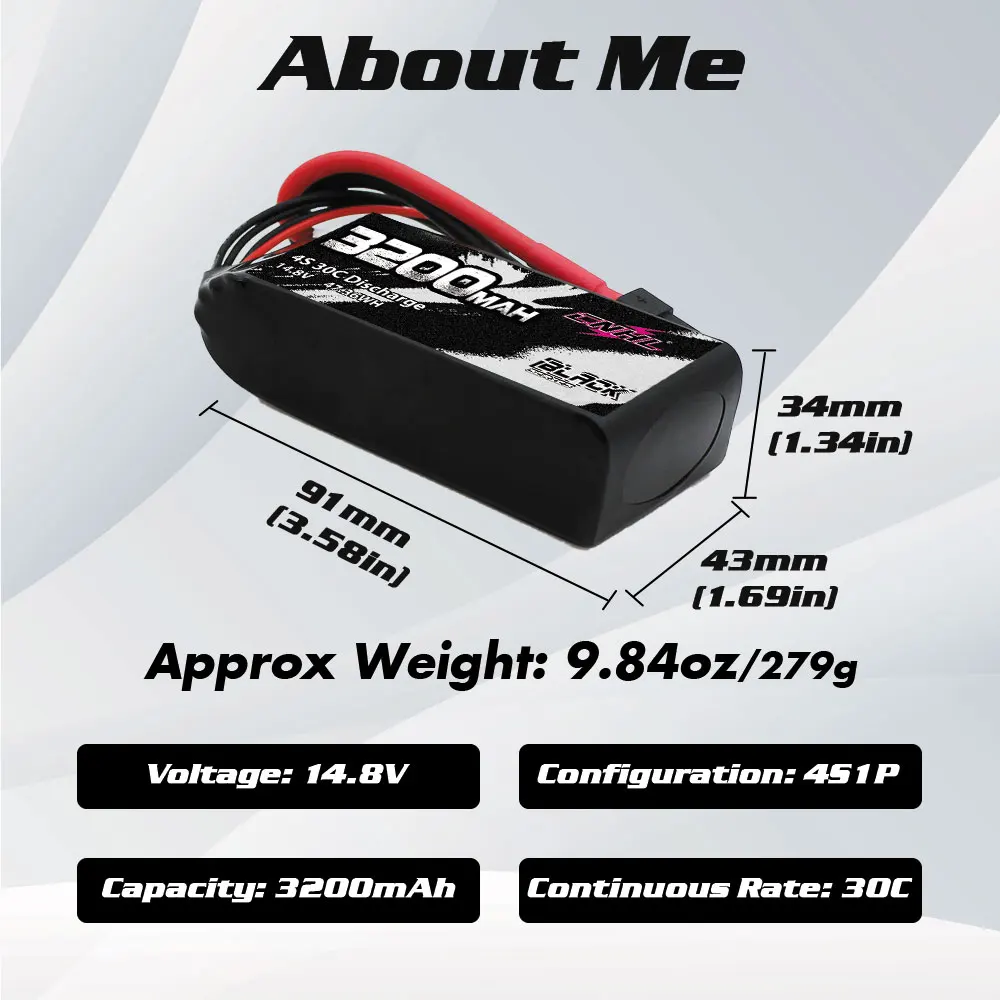

3. 4S 14.8V 3200mah 30C XT60-Plug
Stock Number：320304BK
Capacity：3200mAh
Voltage：14.8V / 4-Cell / 4S1P
Discharge Rate：30C Continual / 60C Burst
Charge Rate：5C Max
Size(1-5mm difference)：34X43X93mm
Approx Weight(±5g)：279g
Output Connector：XT60
Balance Connector：JST / XHR
Remarks：N/A
Wire (AWG)：12#

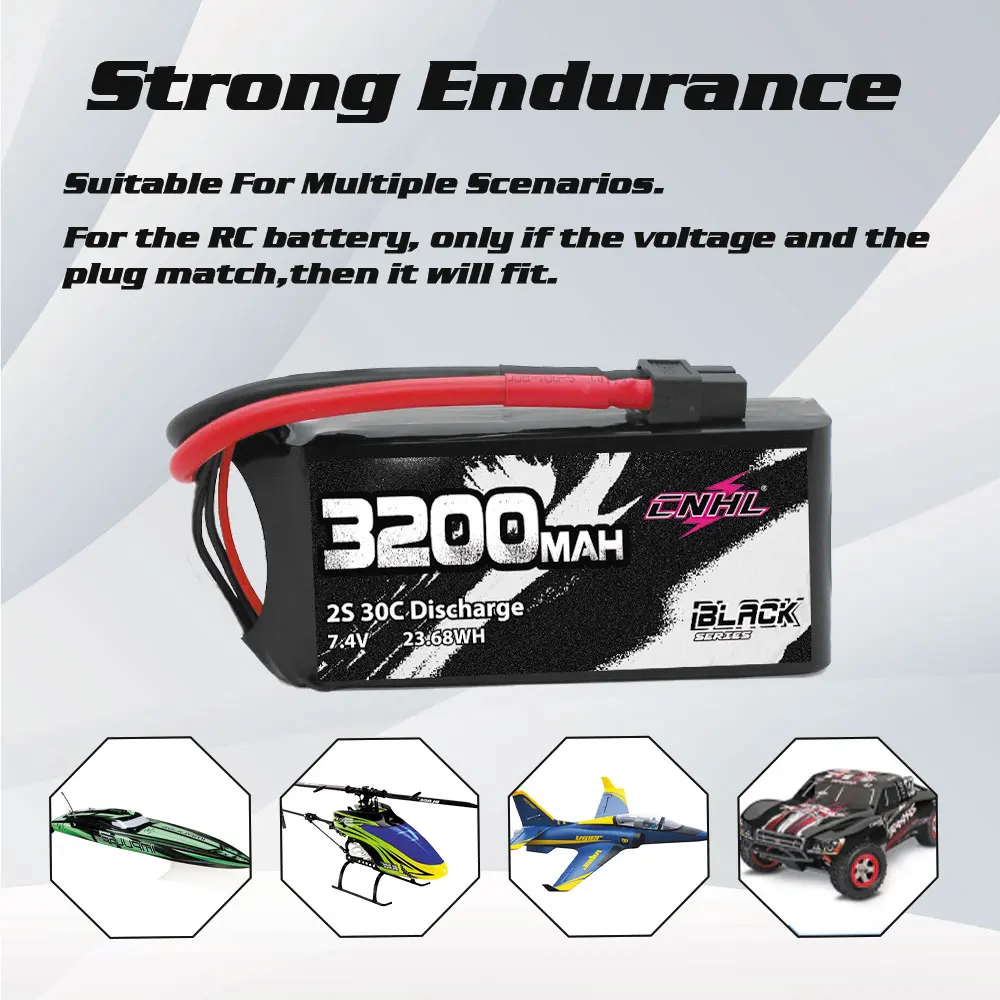

Application Scenarios

CNHL 2S 3S 4S 3200mAh 30C 40C lipo battery designed for RC Helicopter Airplane Quadcopter UAV Drone FPV
Notice: For the RC battery, only if the voltage and the plug match, then it will fit.
Note: due to the difference between the measurement, the battery dimension and weight may have little error.

Notice

1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don't overcharge more than 4.2V and don't over discharge below 3.2V, or your battery will be destroyed，never leave battery unattended when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle several times first.
