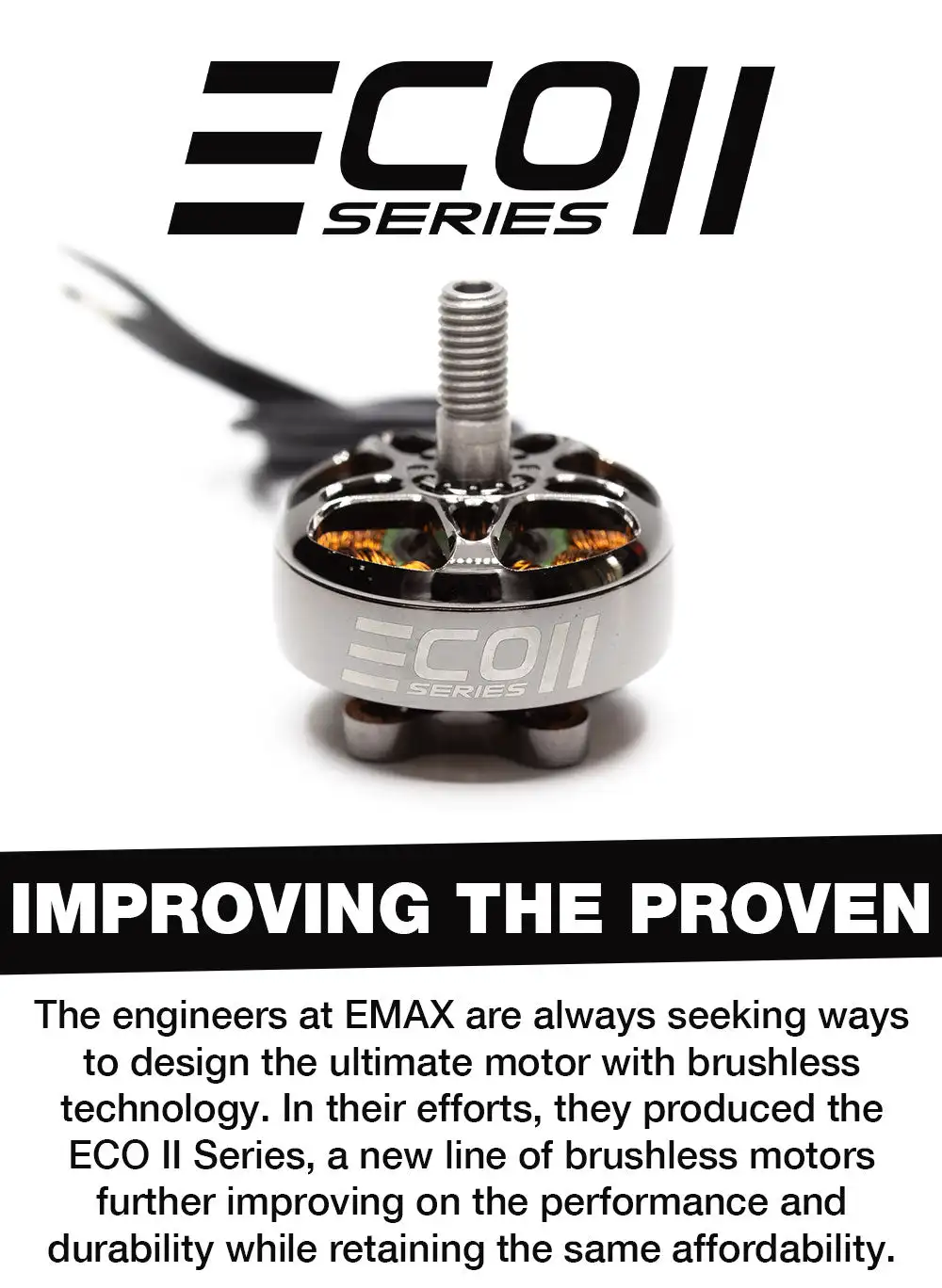

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.

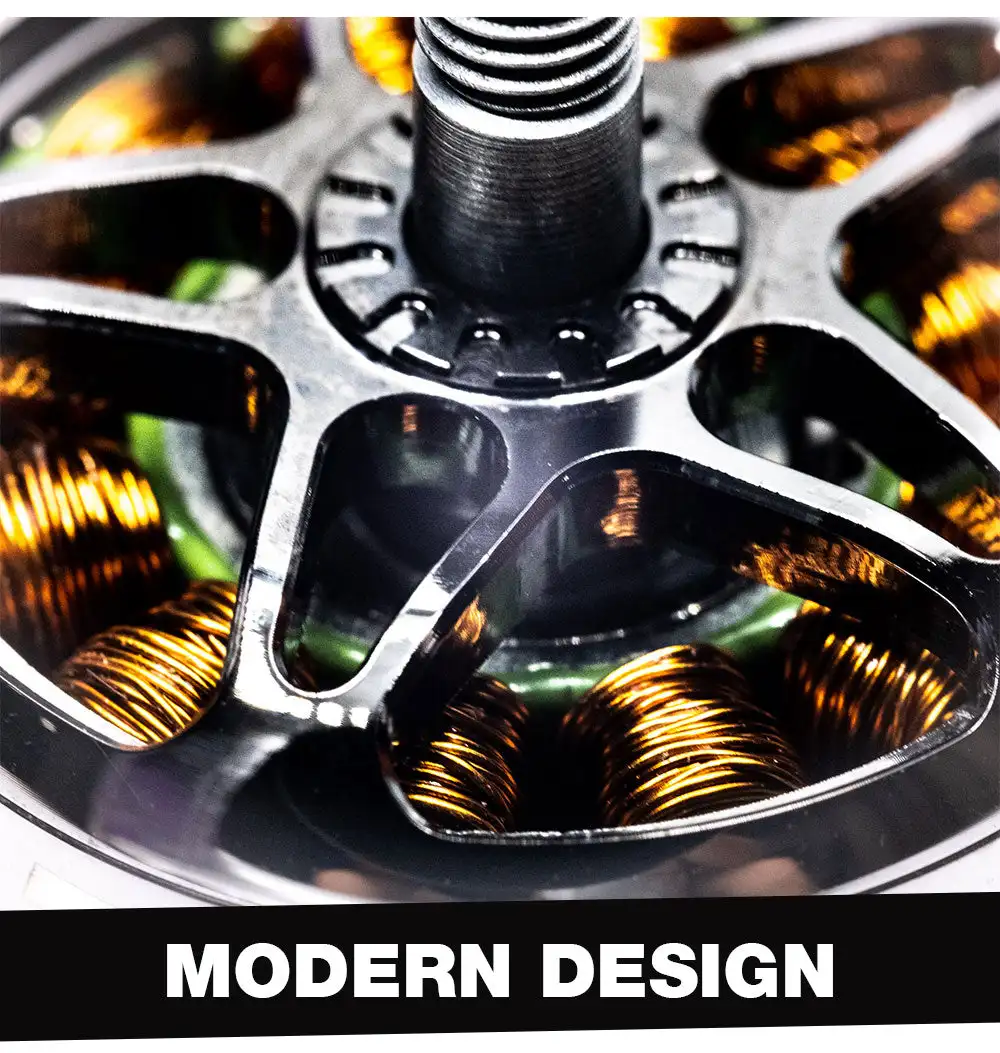

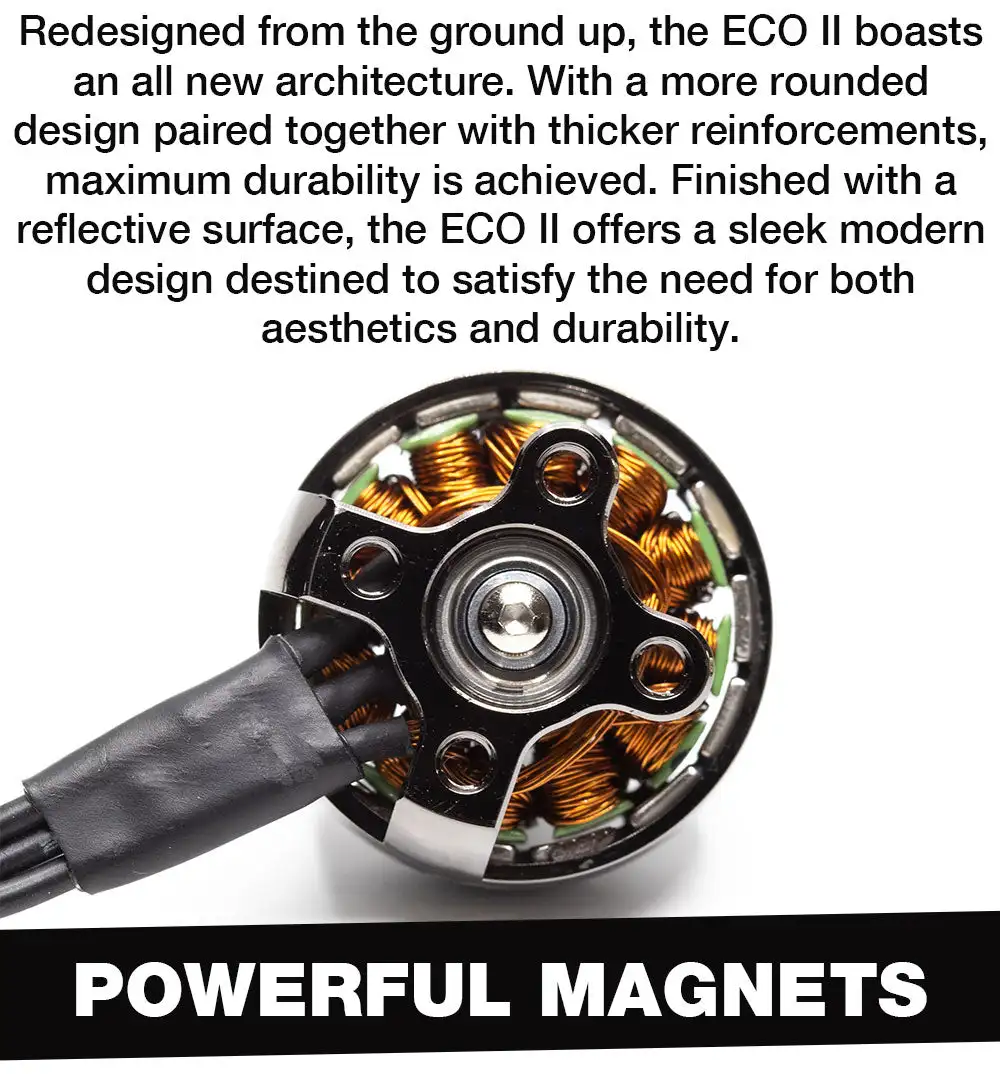

Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

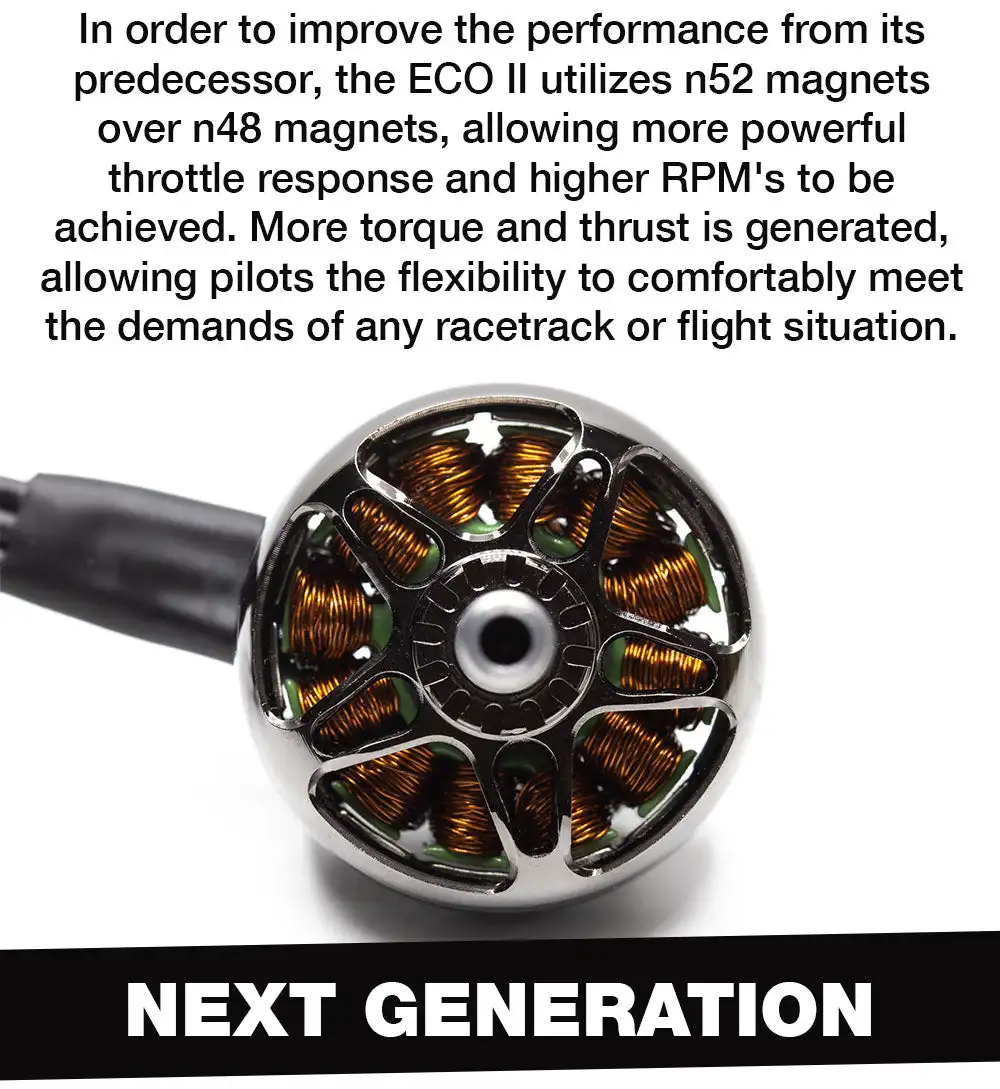

In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.

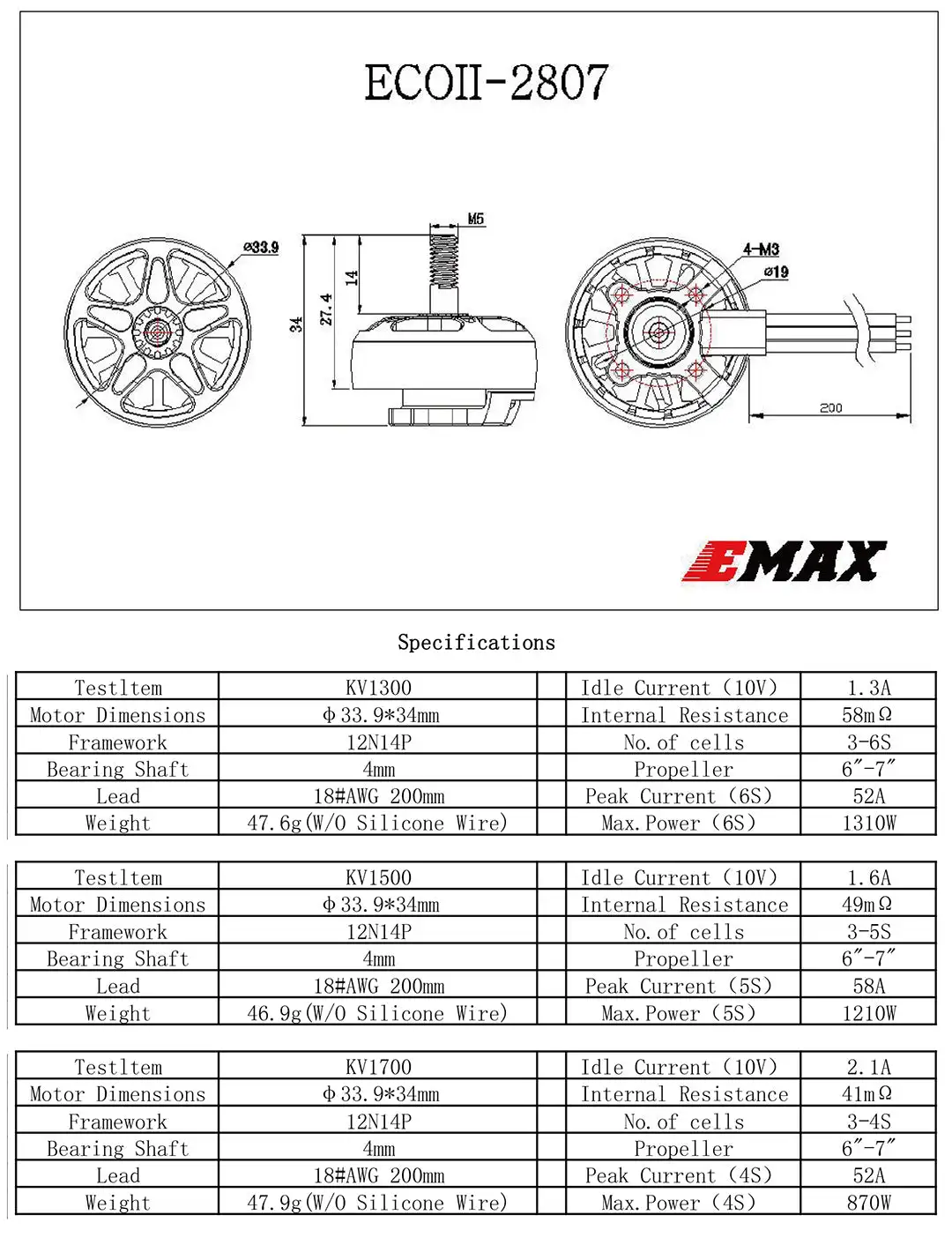

Specifications:

Brand: Emax

Item Name: EMAX ECOII 2807 Motor

Framework: 12N14P

Length: 34mm

Diameter: 33.9mm

No.of cells: 3-6S  1300KV

No.of cells: 3-5S  1500KV

No.of cells: 3-4S  1700KV

Propeller:6"-7"

Weight: 47.6g(W/O Silicone Wire)  1300KV

Weight: 46.9g(W/O Silicone Wire)  1500KV

Weight: 47.9g(W/O Silicone Wire)  1700KV

Prop adapter shaft thread: M5

Bearing Shaft:4mm

Shaft Thread:CW



Feature:

Precision bearing

Steel shaft

Anodizing

19*19mm hole pattern

Multi-strand winding

200mm 18 AWG silicone wire



Package Included:

5* M3*10 Screw

5* M3*8 Screw

1* Aluminum M5 nylock nut

1* Washer and Screw for shaft

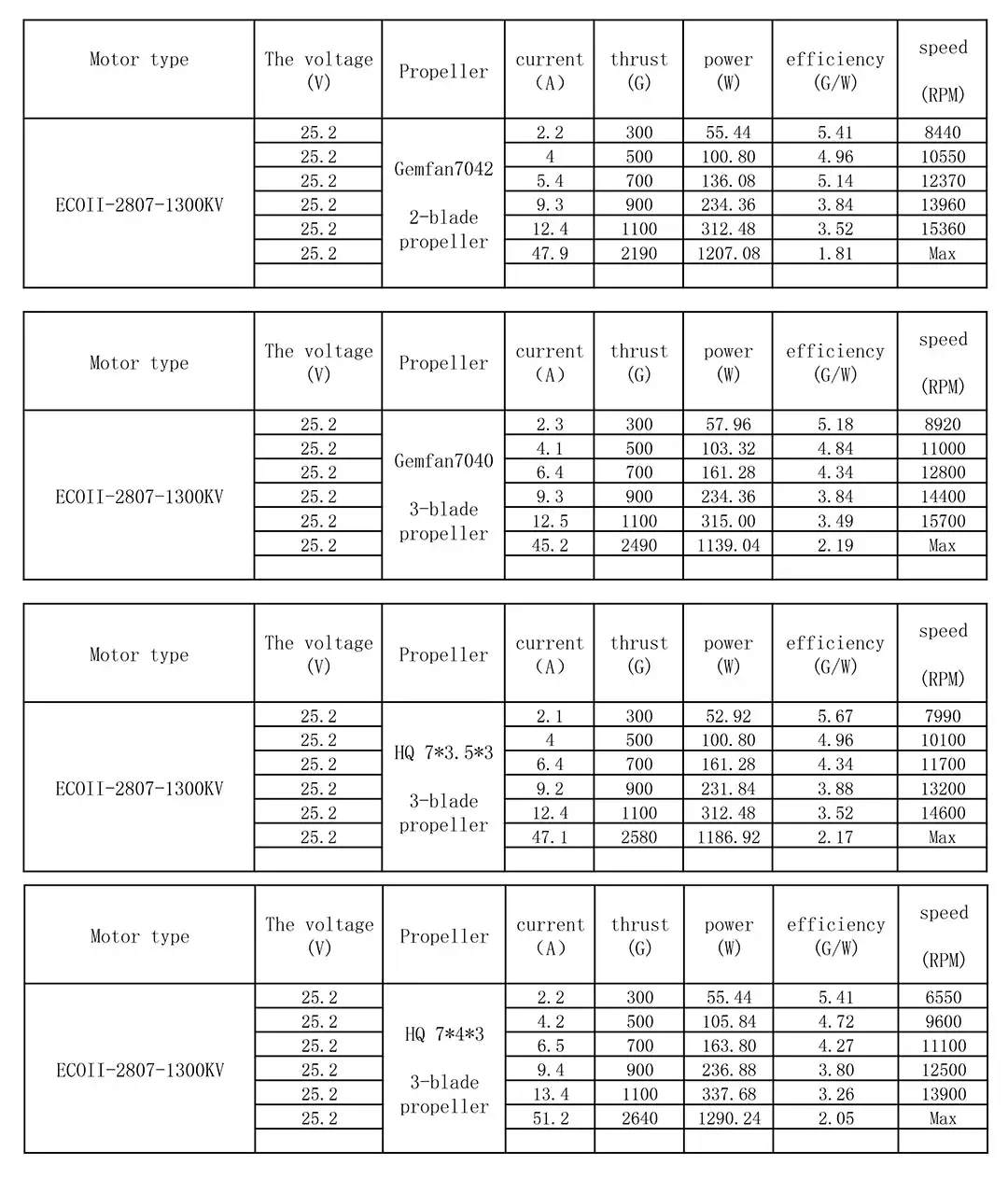

ECOII 2807  1300KV

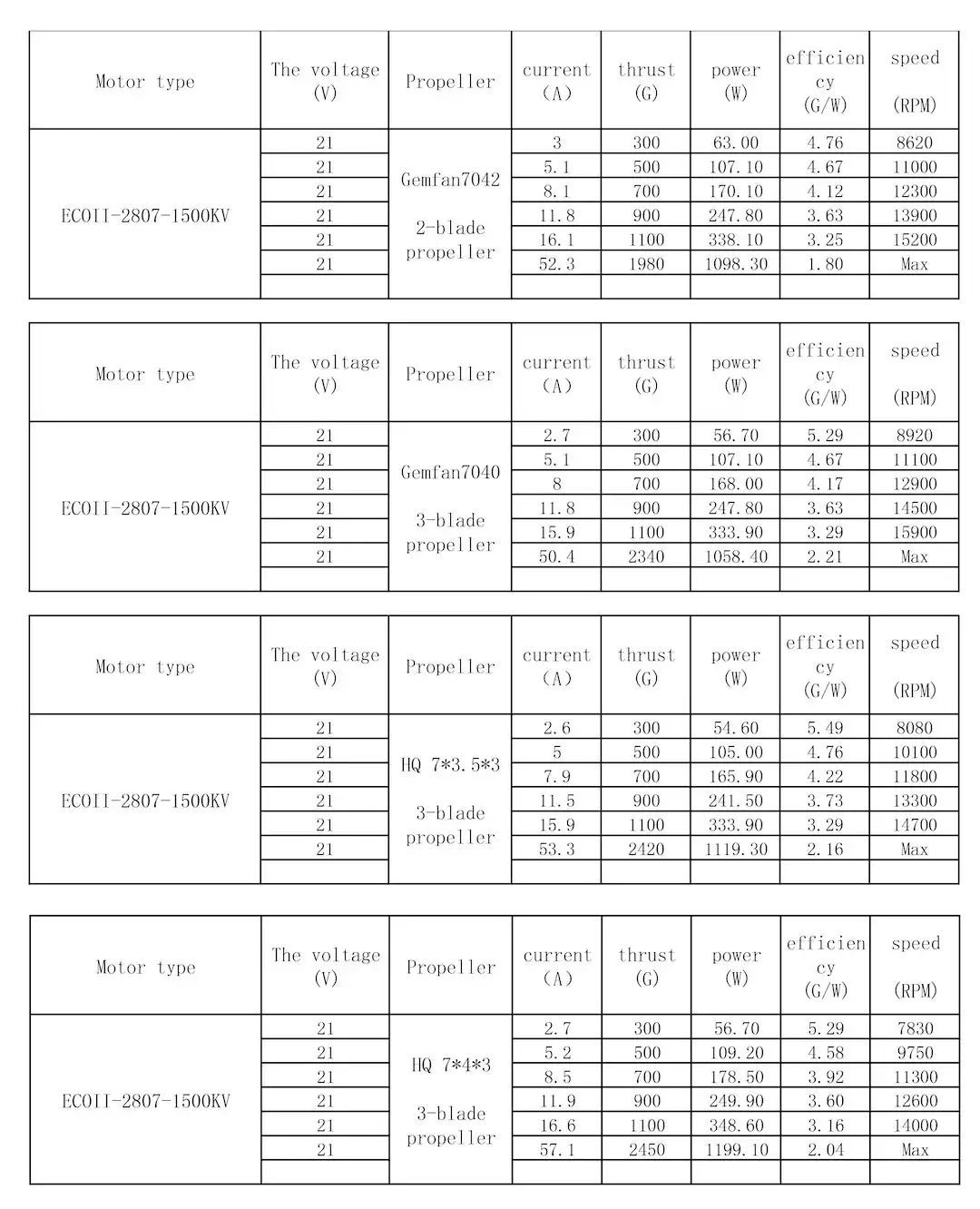

ECOII 2807  1500KV

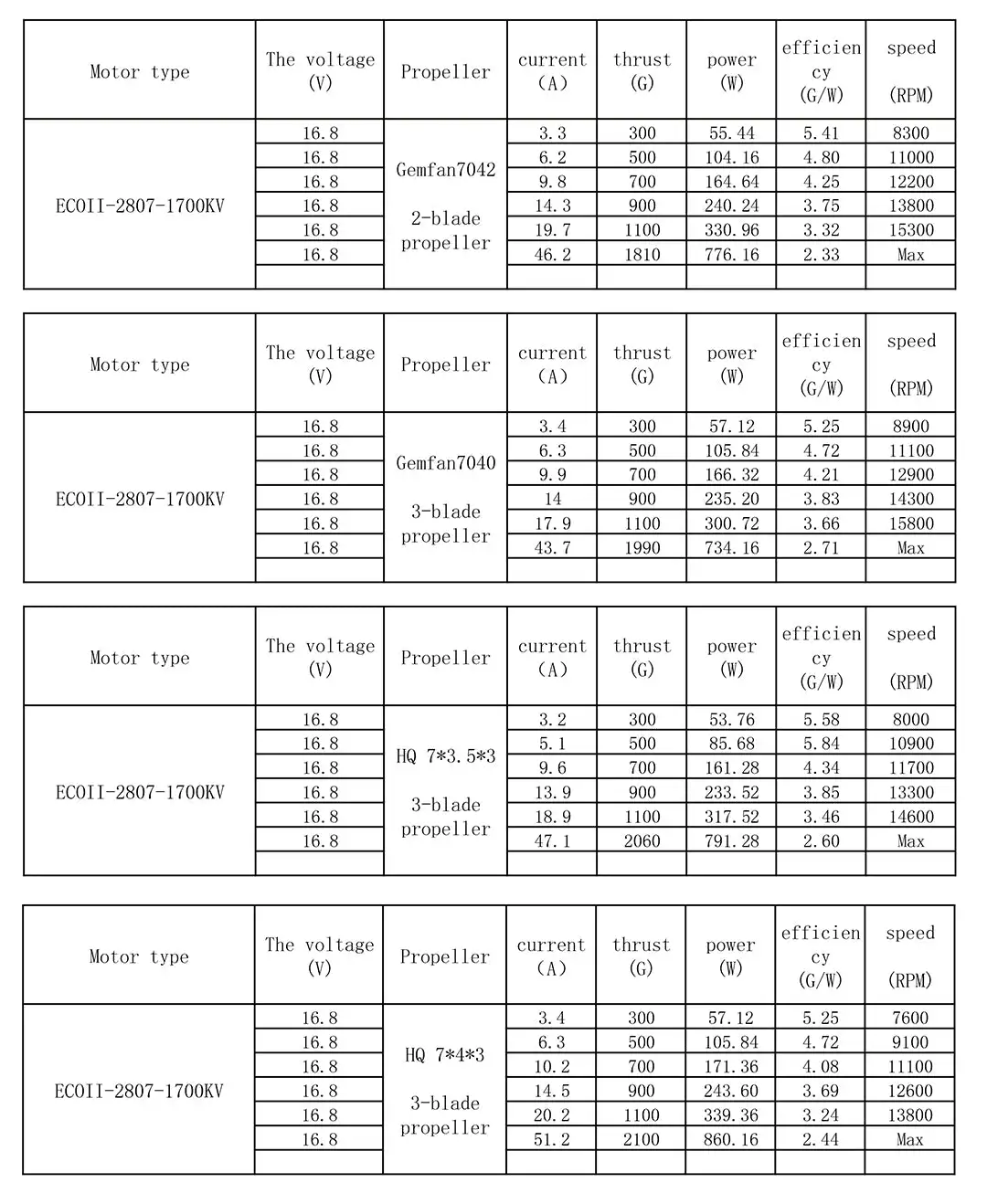

ECOII 2807  1700KV
