SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Hign-concerned Chemical: None

Place of Origin: Guangdong, China

Brand Name: Foxeer

Model Number: Nano Predator 5

Private Mold: NO

Type: Drone Accessories

Product name: Foxeer Nano Predator 5 Racing Camera

Weight: Plug:4.8g Solder Pad:4.3g(Exclude cable)

Size: 14*14mm; 19*19mm(Add Bracket)

Dear customer, if you need more model and product information, please contact my WHATSAPP(+86 13107345542), and I will give you a better answer.



Sensor Type	Sony 1/3" CMOS Sensor
Scale	4:3(default)/16:9 Switchable
Tv System	PAL(default)/NTSC Switchable
Resolution	1000TVL
Shutter Speed	PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output	CVBS Analog Signal
FOV	FOV-H:125° FOV-D: 155°
Shutter Speed	Auto
Minimum Illumination	0.01Lux
White Balance	Auto
DNR	3DNR 2DNR
WDR	Super WDR
Mode	DAY/CLOUDY/Night/LED
Fast Mode Switch	Long Press Right Button to switch among DAY/CLOUDY/Night/LED
Flight OSD	Voltage/Cam Title/Time/Cross Hair
Flip	Supported
Input Voltage	4.5V~20V
Language	ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
Working Temperature	-10°~50°C RH90% MAX
Working Humidity	20~80%
Storage Temperature	-20°~70°C
Consumption	50mA±15% @ DC12V 115mA±15% @ DC5V
Dimension	14*14mm; 19*19mm(Add Bracket)
Weight	Plug:4.8g Solder Pad:4.3g(Exclude cable)

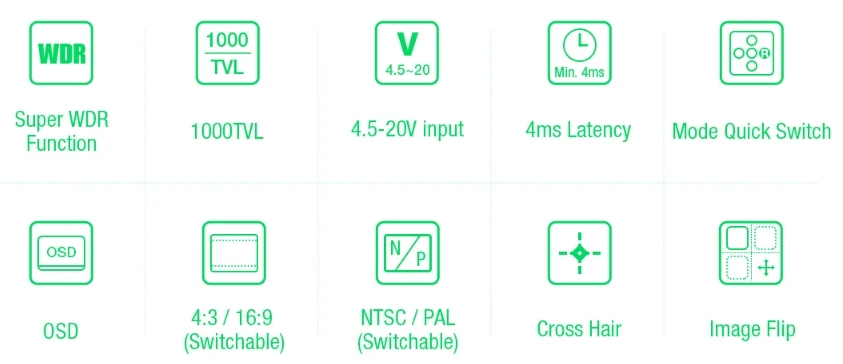

Exclusive Optimization for LED

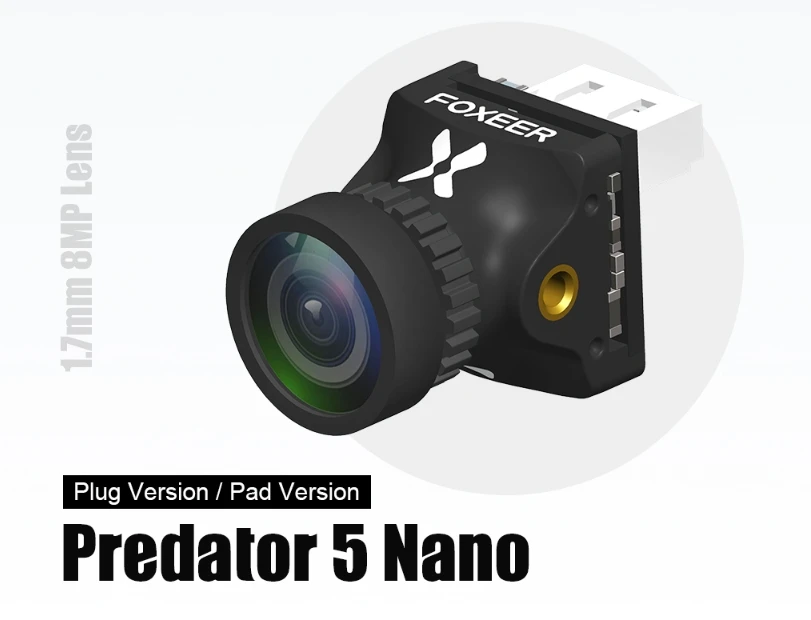

1.7mm Lens

Perfect 155° FOV for Racing





More Natural Color

Super Crisp lmage

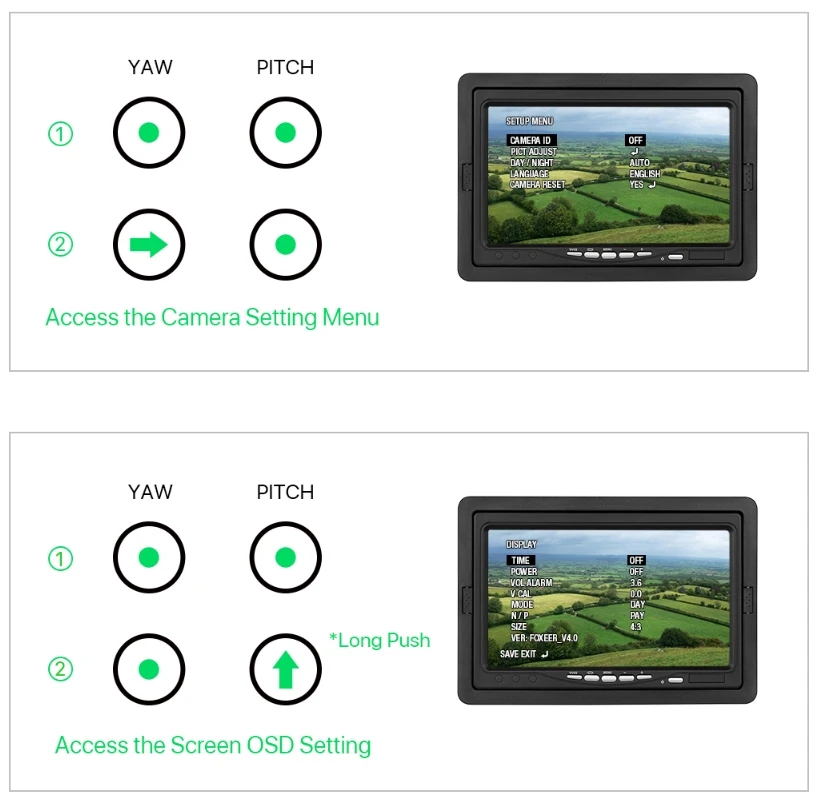

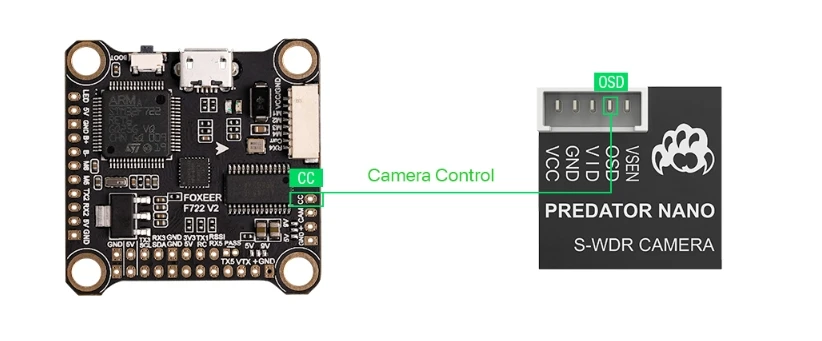

Support OSD & Menu Remote

Control With Foxeer FC

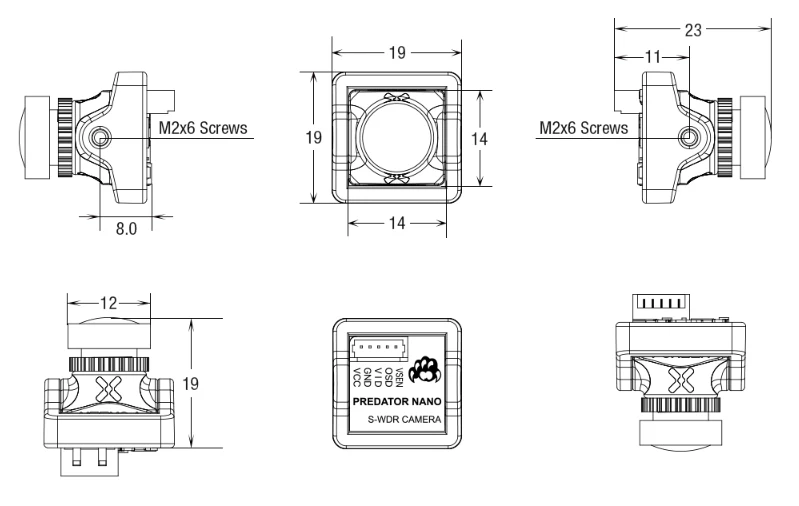

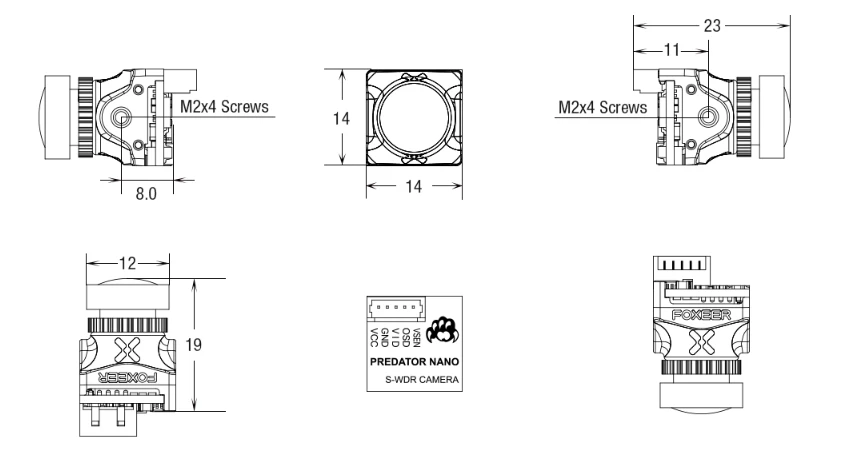

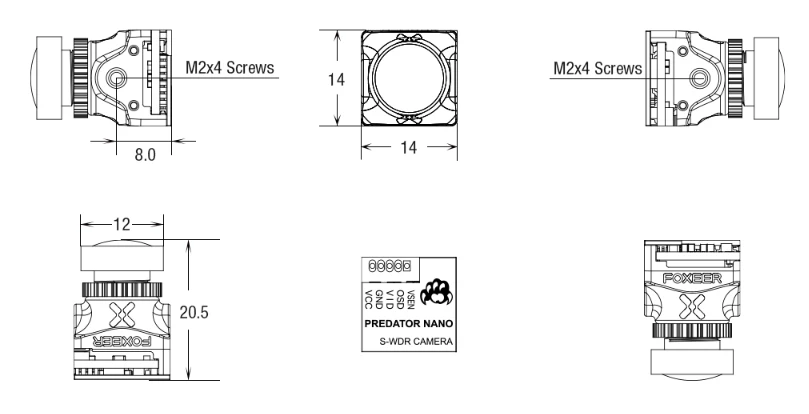

Unit of length: mm

Plug Version

Pad Version

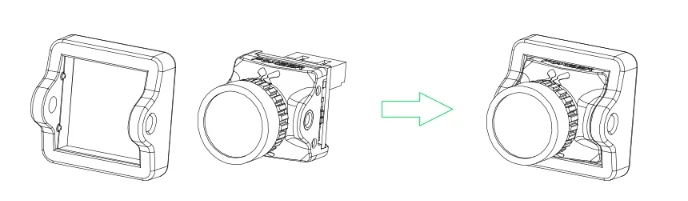

*Bracket is added from the front
