SPECIFICATIONS

Brand Name: Happymodel

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: RECEIVERS

Size: As Show

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: Other

Technical parameters: value 2

Model Number: SE0802

Four-wheel Drive Attributes: Motors



Specification:
Brand name: Happymodel

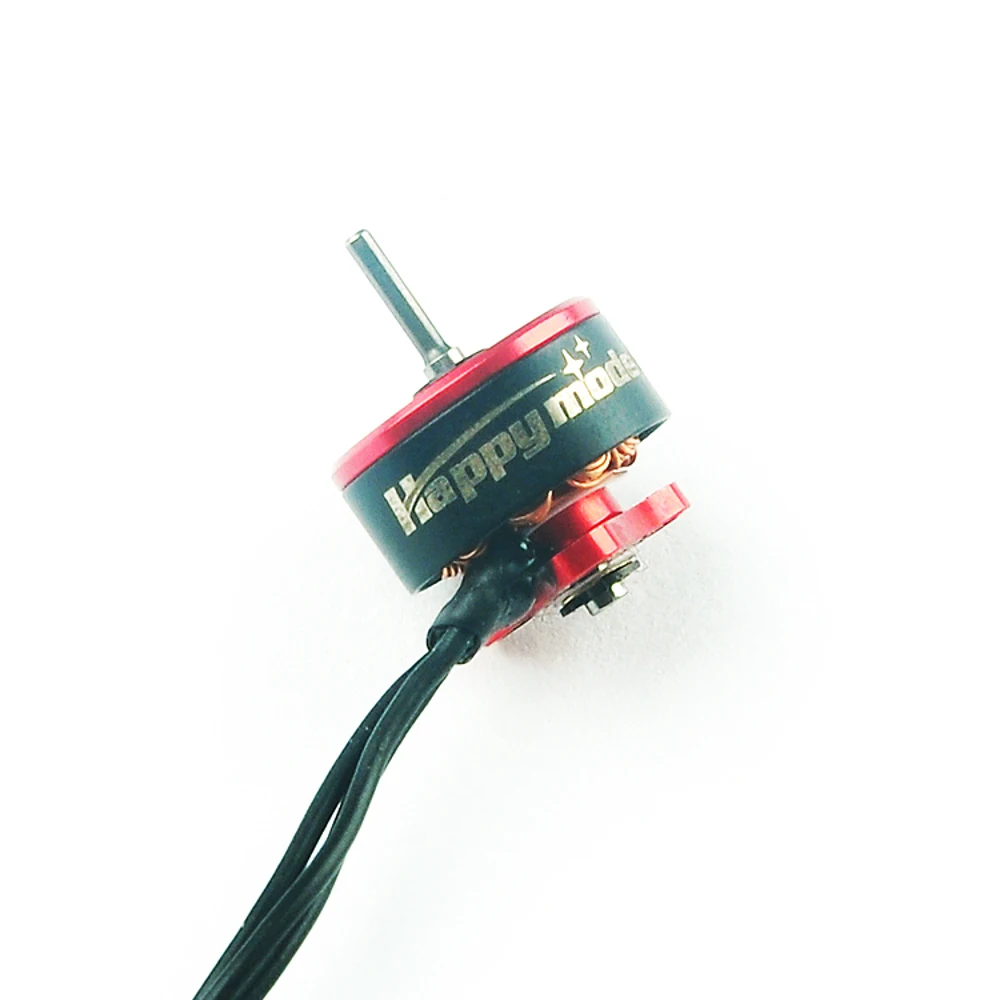

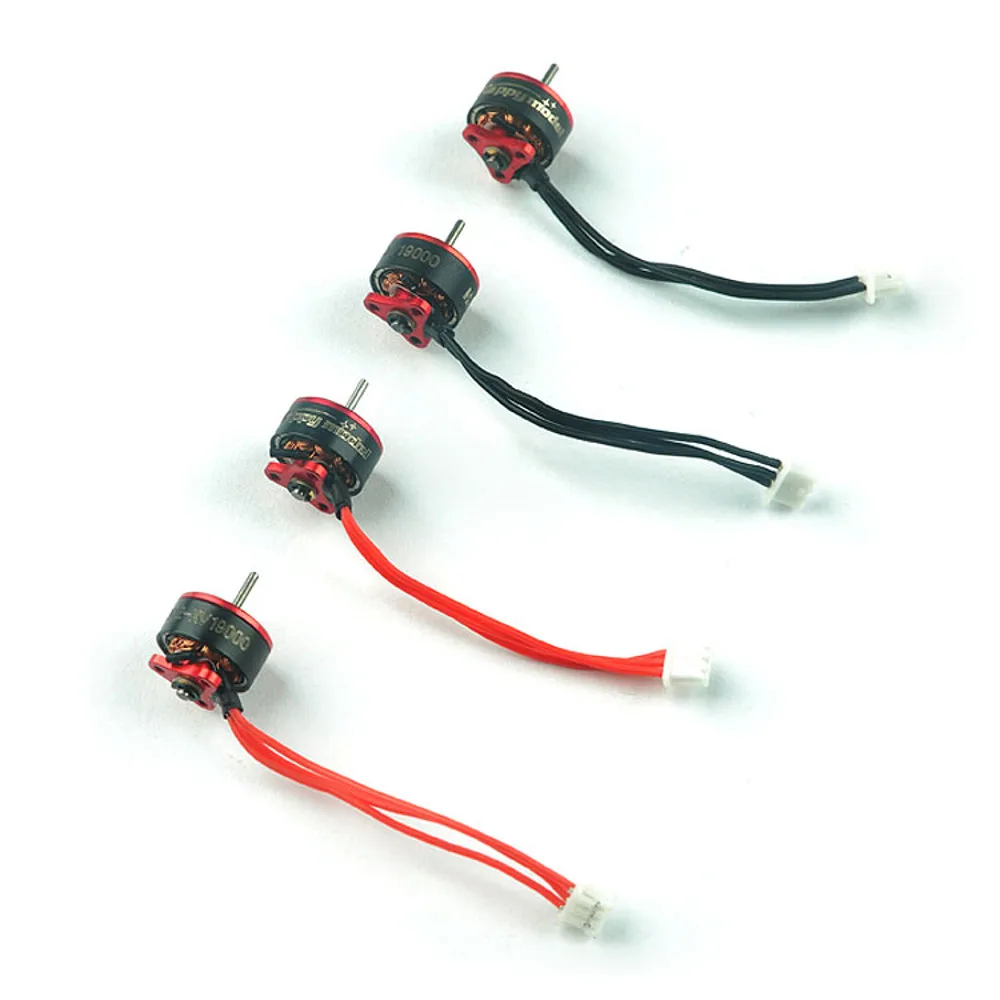

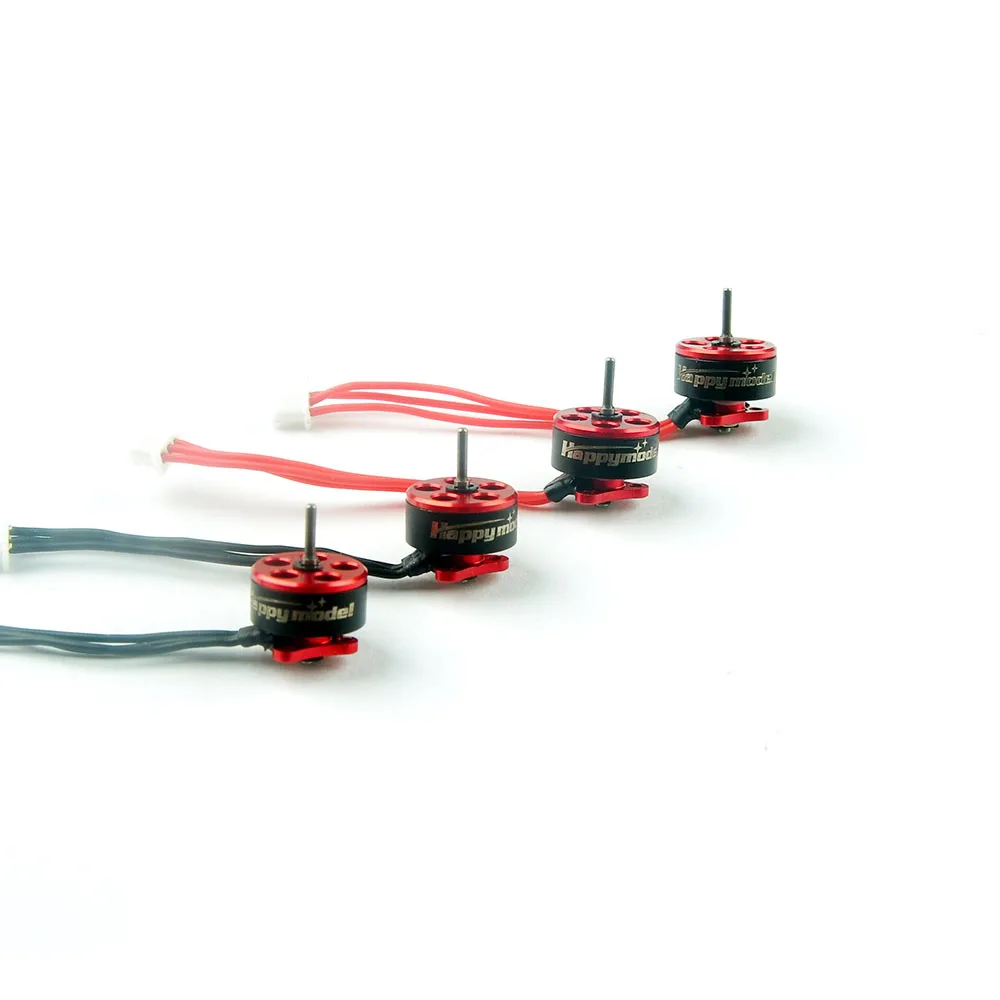

Item name: SE0802 1-2S brushless motor
KV: 16000KV, 19000KV 22000KV 14000kv (option)
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): 10.5mm*14.9mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1-2S
Wire length(include connector): 40mm

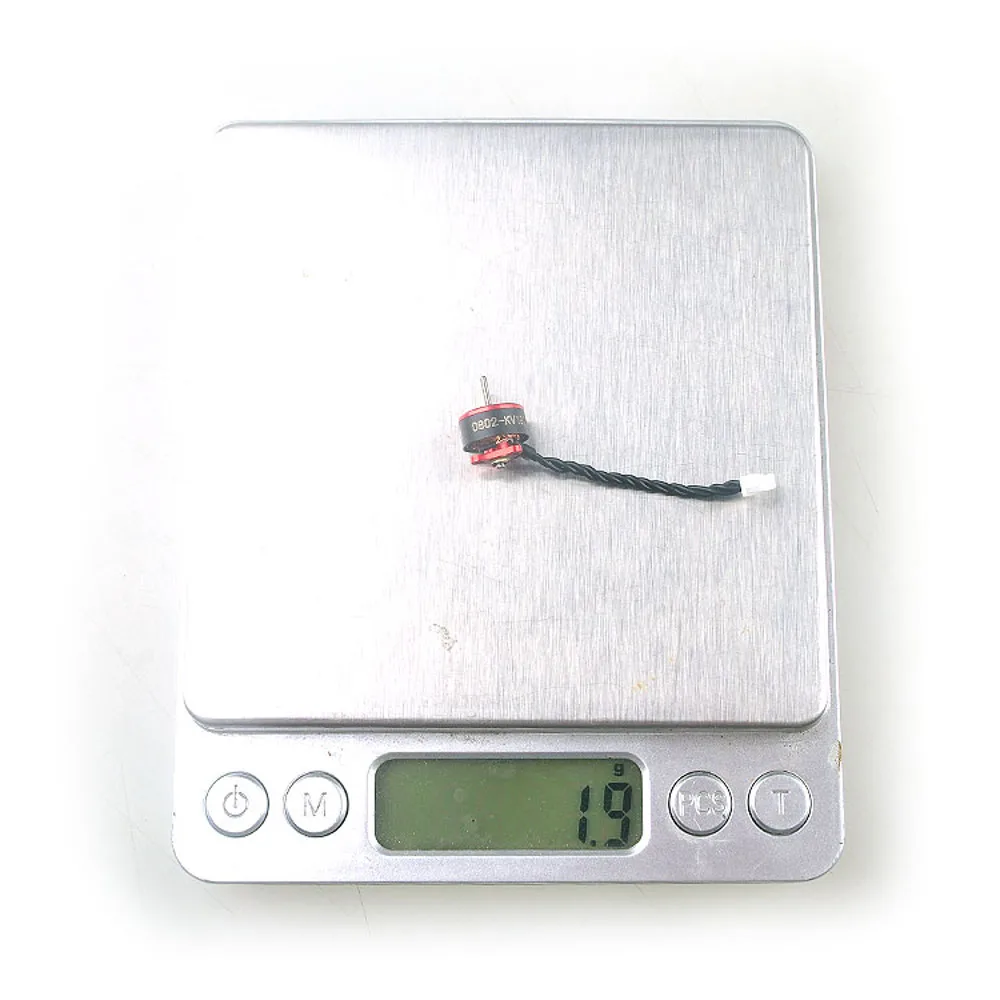

Weight: 1.9g

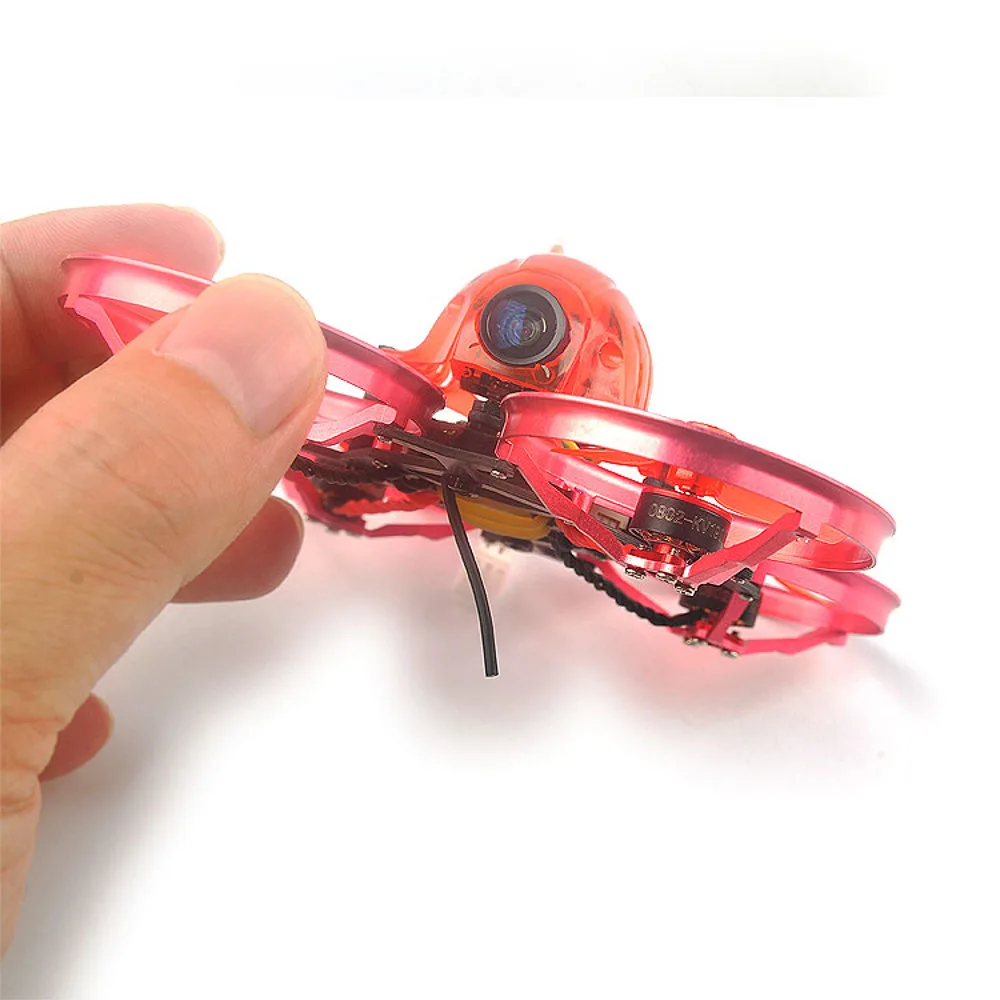

16000KV Suit for 2S Whoop FPV Racing Drone
19000KV Suit for 1S Whoop FPV Racing Drone
25000KV Only Support 1S Lipo

Features:
Super tiny only 1.9g
Double E-clip design, prevent Motor bell to flying off
Good Dynamic balance

Package Included:
choose the quality by yourself.
