Feature:

*Support(20x20-25.5x25.5mm)mounting holes;

*Supports AIO/stack installating at the same time, ultra-light and lasts super long in flying.

Brand Name:Rekon

Model:Rekon4 FR Freestyle Frame

Material:3K Carbon Fiber

Type:4" frame

Wheelbase:180mm

size:180*140mm

Top plate thickness:1.5mm

Bottom plate thickness:1.5mm

Middle plate thickness:1.5mm

Arm thickness:4mm

Space of top and middle plate:20mm

Installation holes:20x20mm/25.5x25.5 mm

Support camera:19*19mm

Weight:52.2g

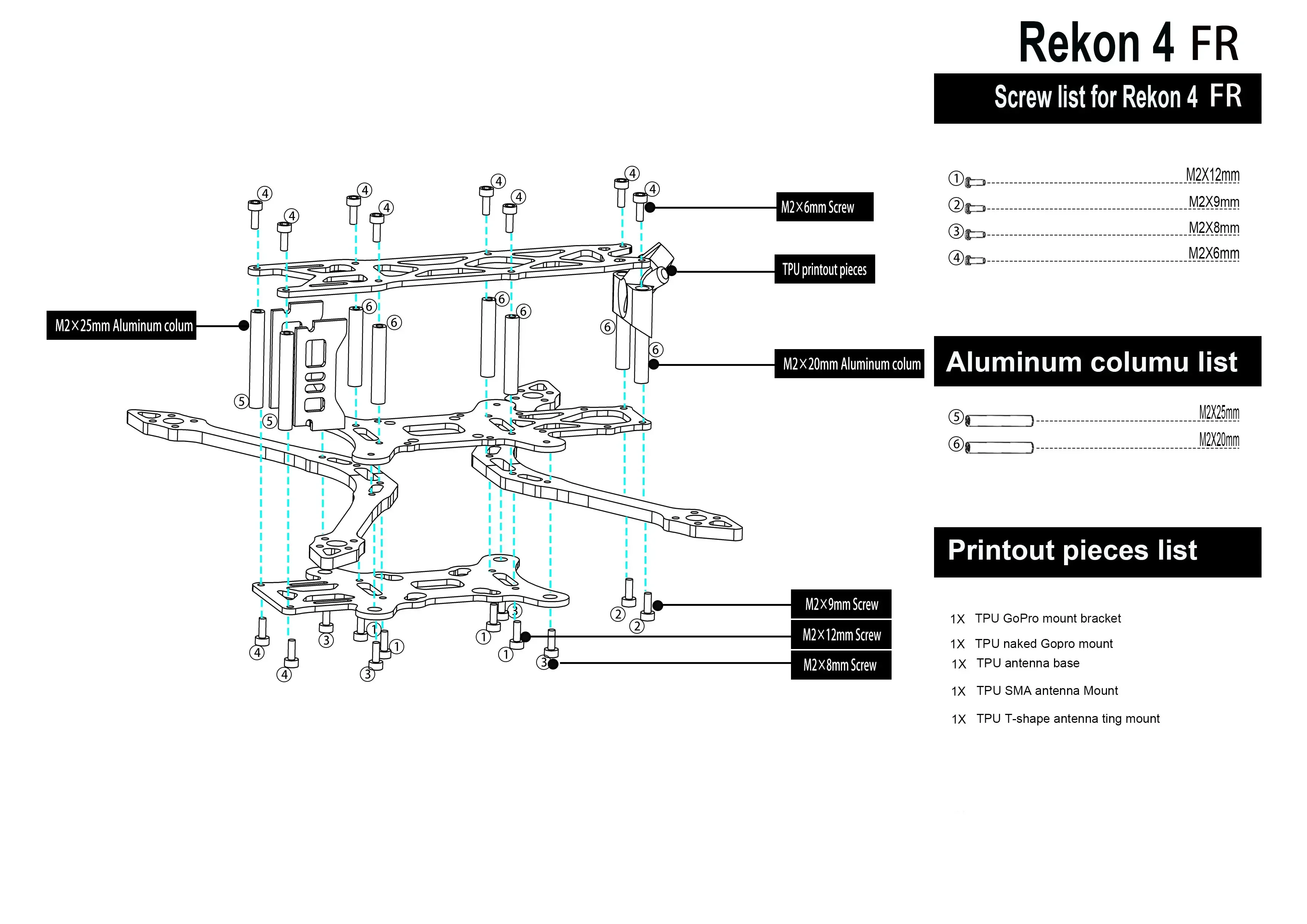

Package Includes:

1x 1.5mm top plate

1x 1.5mm bottom plate

1x 1.5mm middle plate

2x 1.5mm camera side plate

2x 4mm Front arms

2x 4mm Rear arms

2x M2*25mm Black mesh aluminum columns

6x M2*20mm Black mesh aluminum columns

5x Round head screws M3*20

4x Head cap screws M2*20

4x Cup head screws M2*12

4x Cup head screws M2*9

12x Round head screws M2*6

2x Round head screw M2*4

5x M3 Self-tightening nuts

4x M2 Self-tightening nuts

8x M3*6.6 shock-absorption balls

4x M2*4 shock-absorption Standoffs

2x Battery straps 15x200mm

1x Battery Anti-slip pad

1x TPU SMA antenna base

1x TPU antenna base

1x TPU GoPro fixing bracket

1x TPU Naked Gopro mount

1x TPU T-shape antenna fixing mount

Recommended Parts:( Not Included )

Flight Controller:Zeus25/ZeusF722 mini

Motor:14XX/16XX/18XX

ESC:25A-40A

Camera:19X19mm

Propeller:4 Inches
