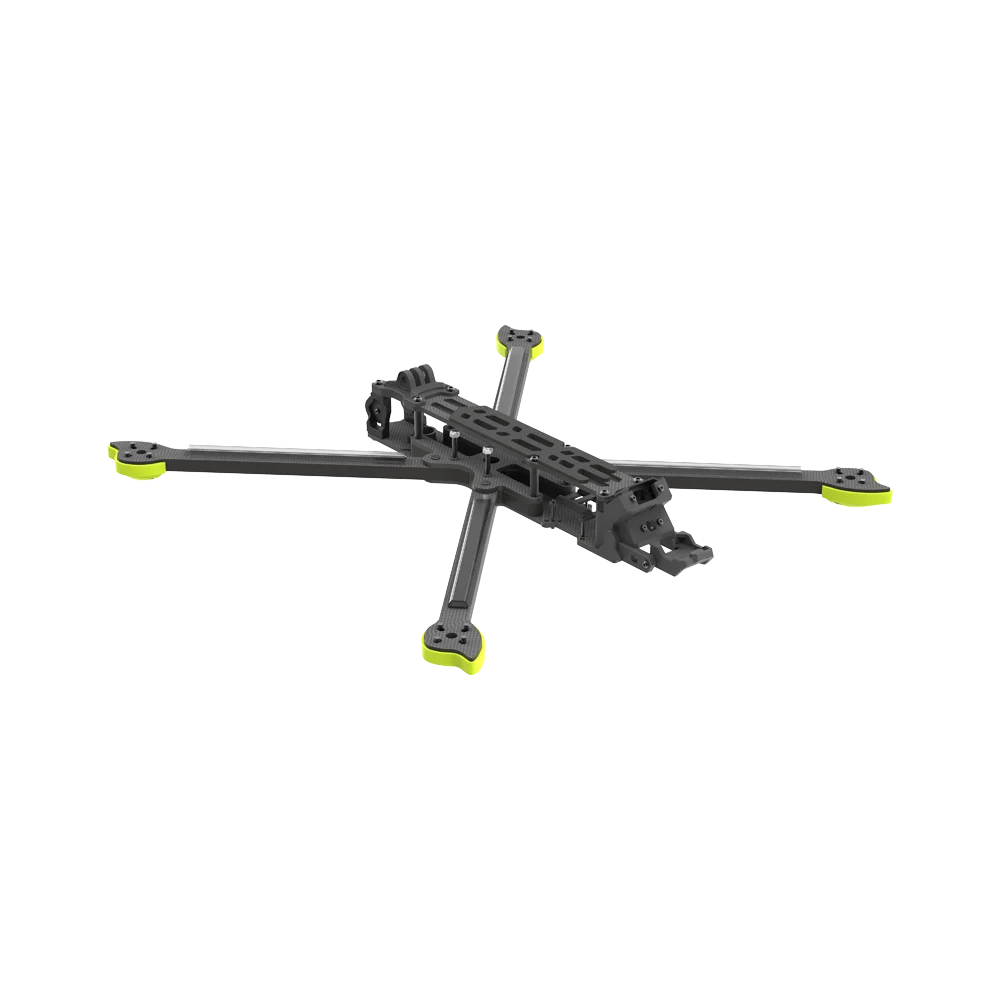

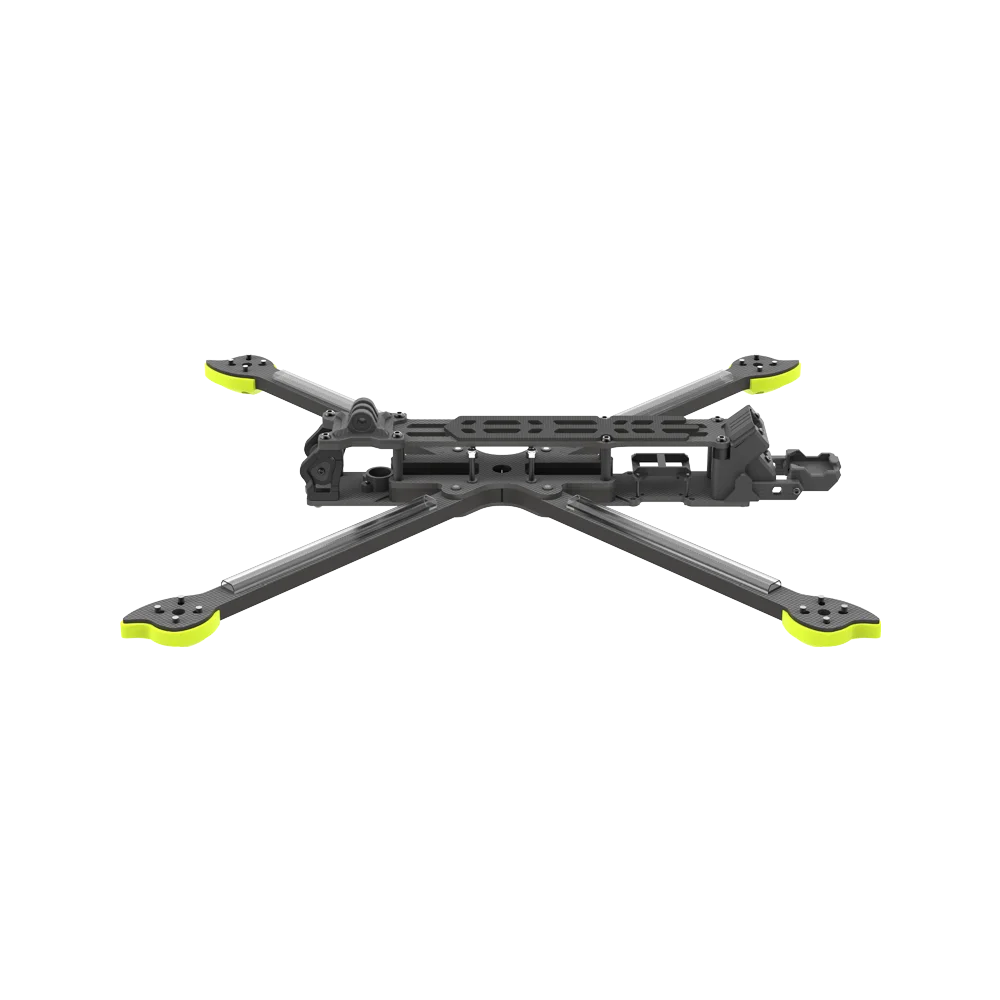

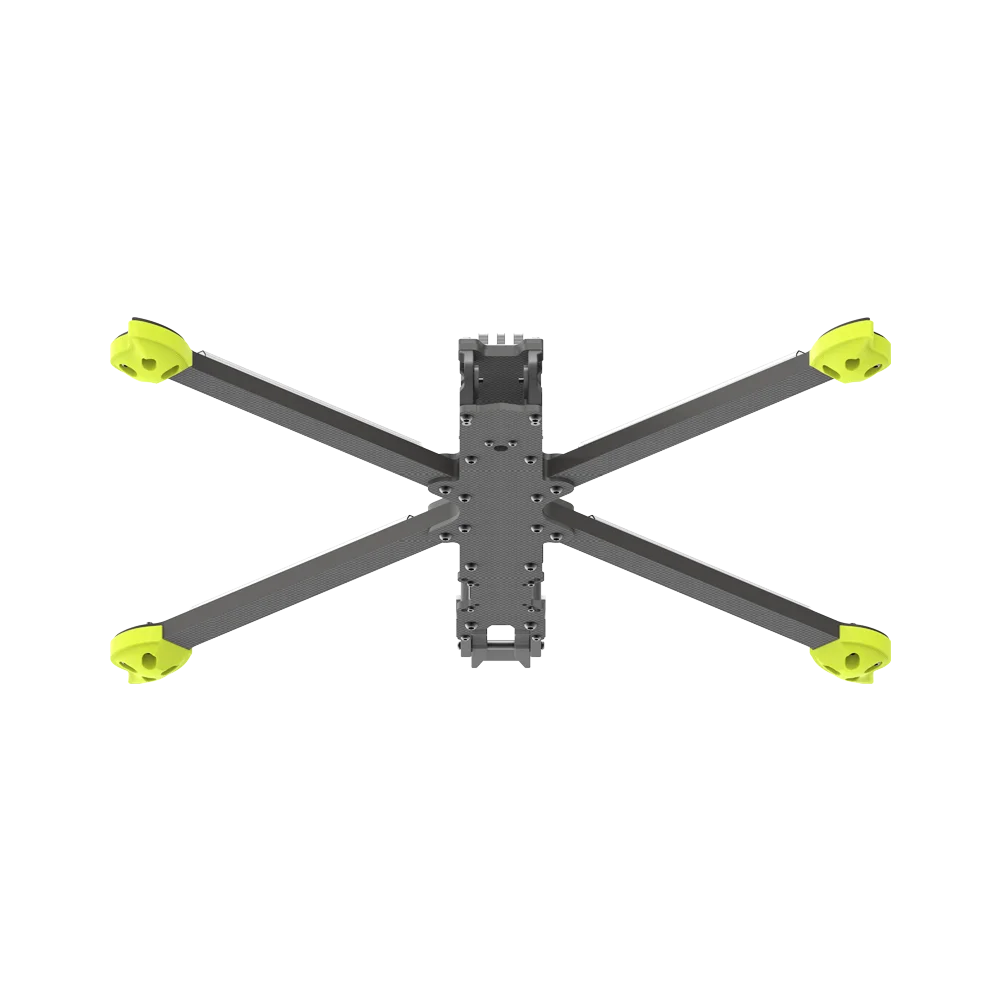

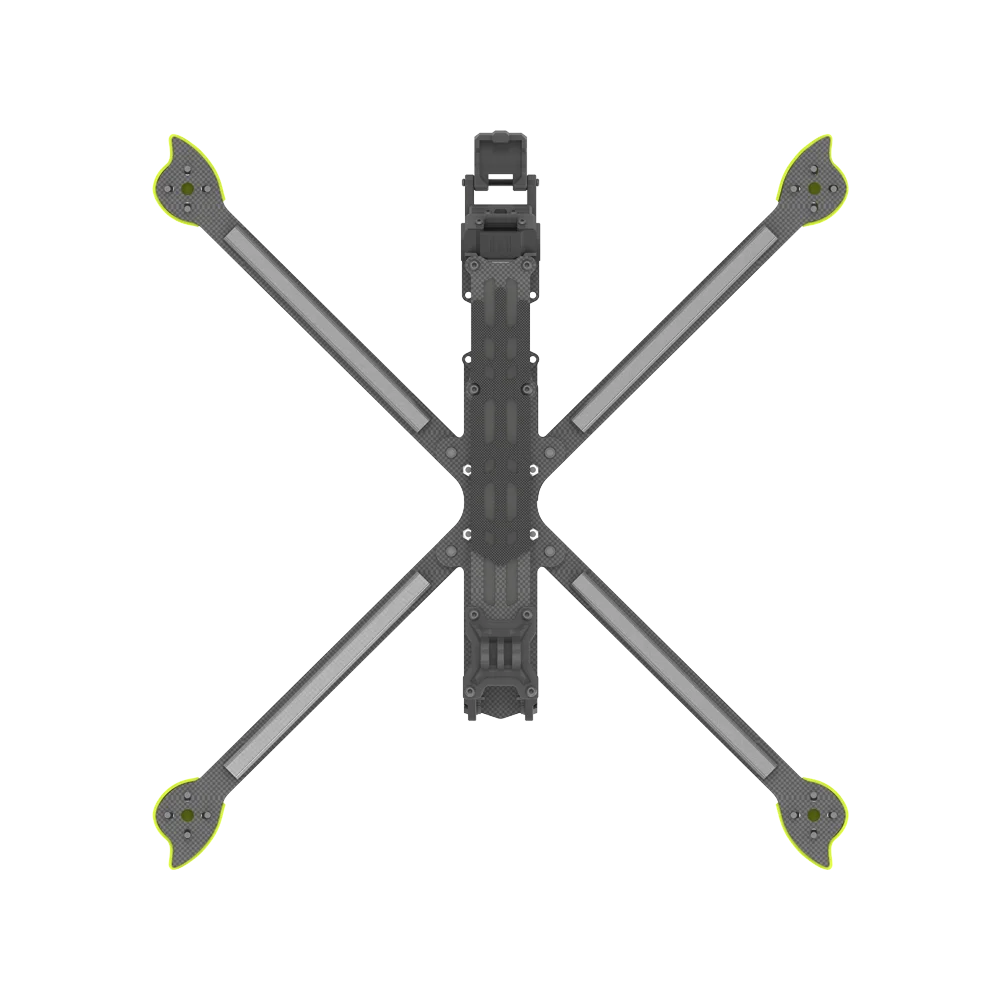

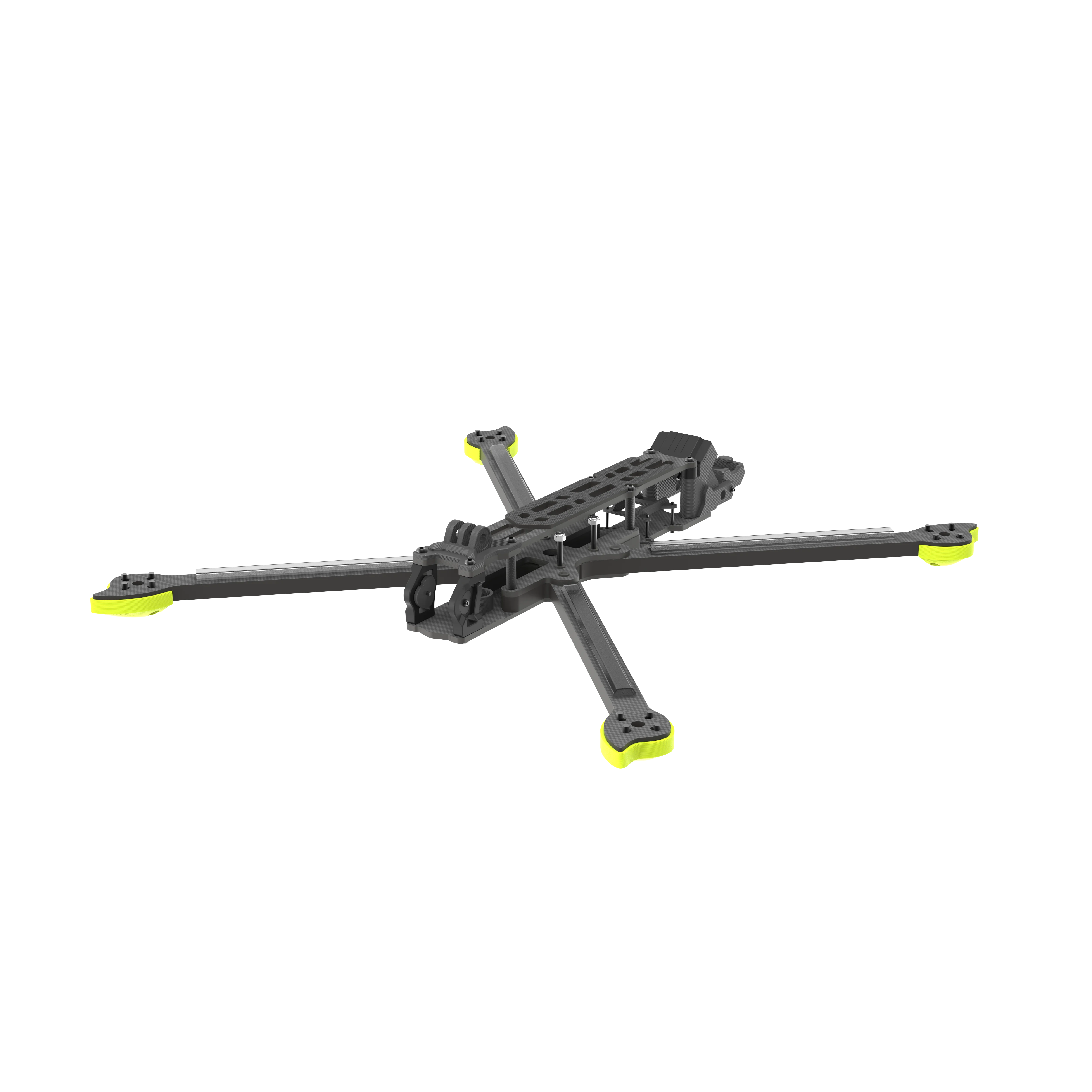

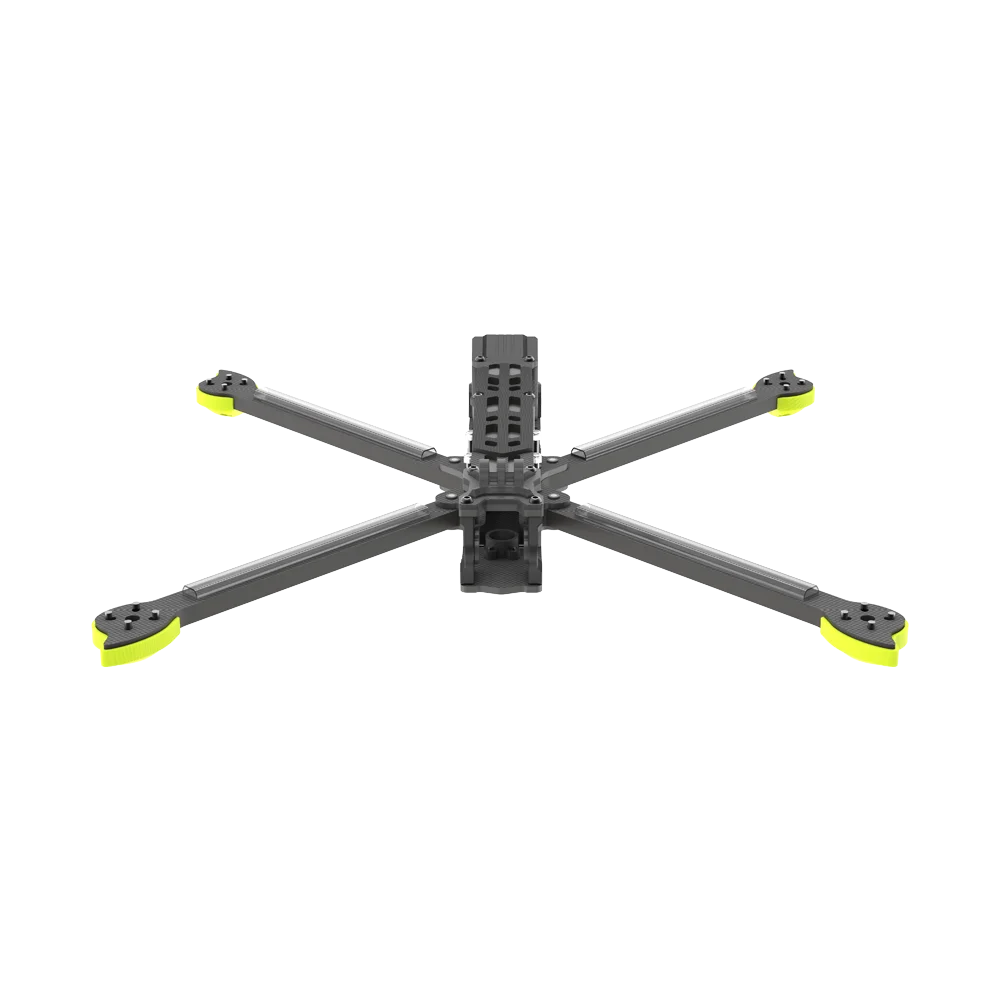

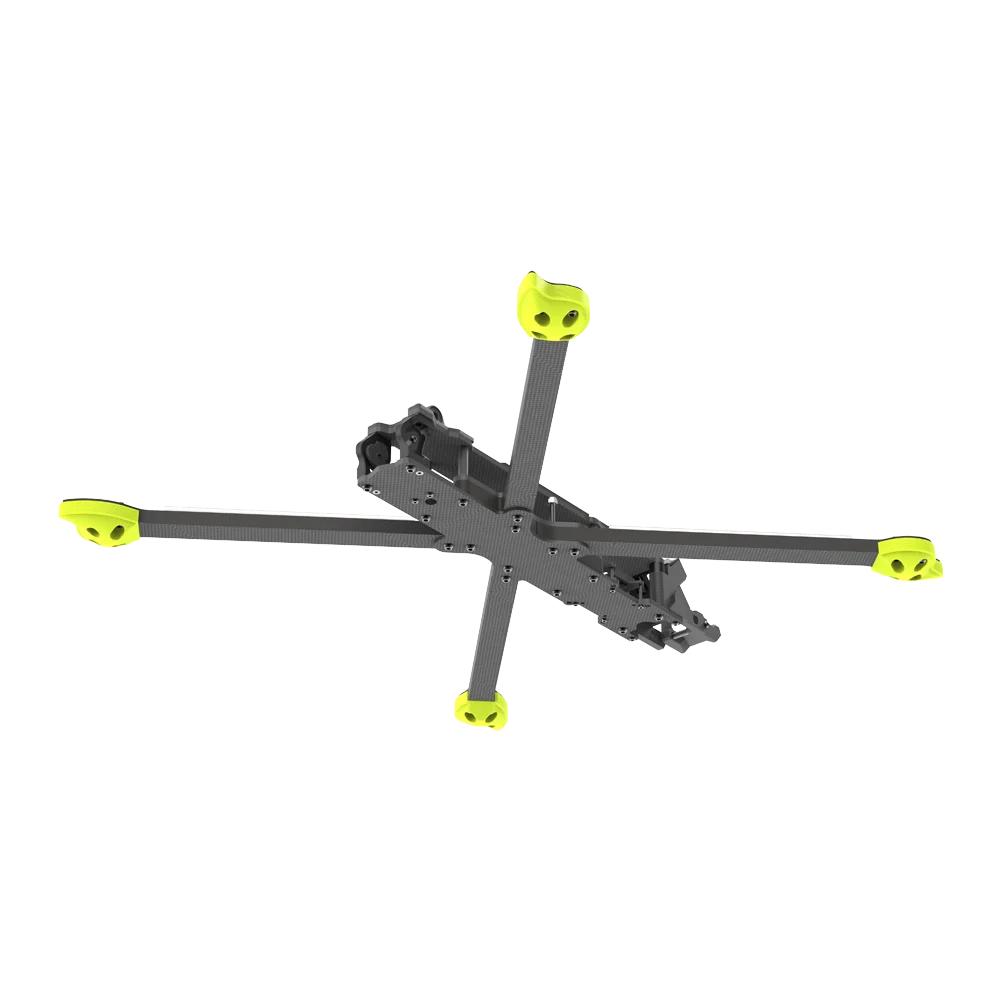

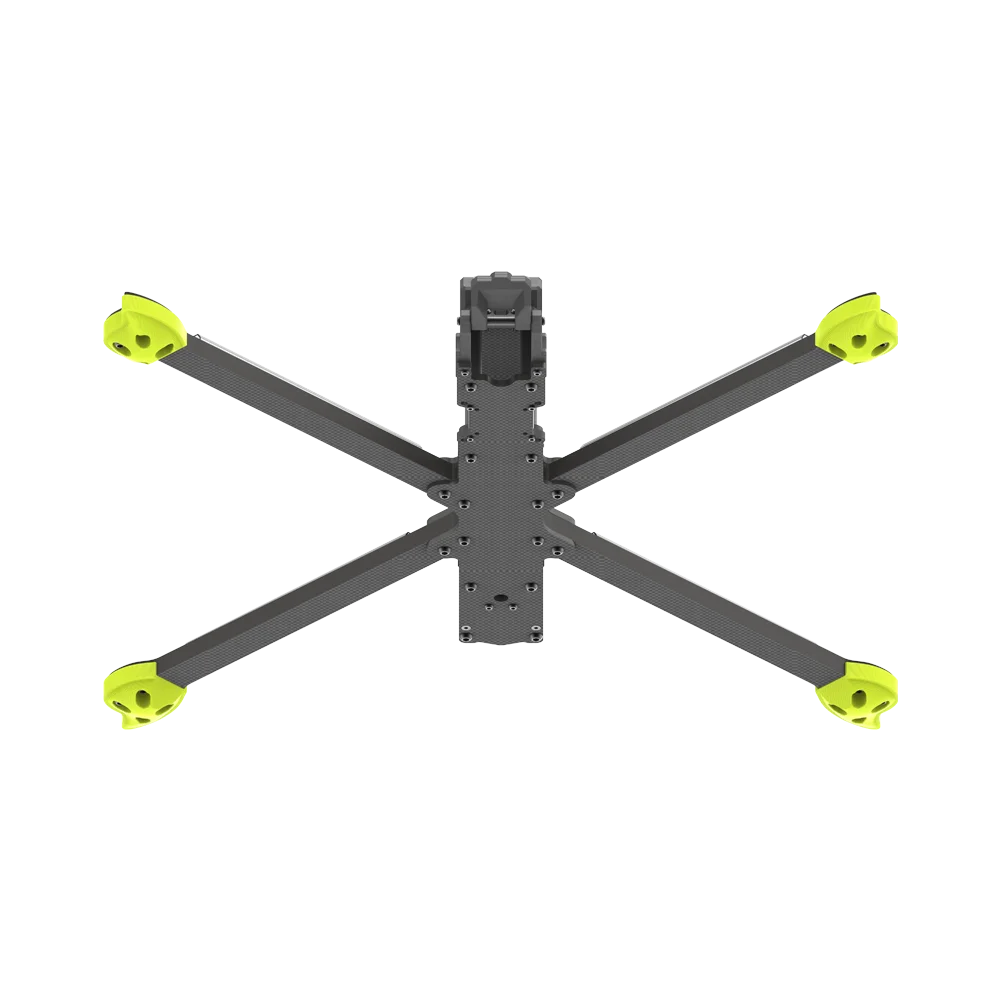

iFlight XL10 V6 10 "FPV Frame Kit 420mm, 8mm arm compatible with O3 Air Unit/cadx Vista HD FPV system for freestyle RC FPV Drone
iFlight XL10 V6 10 "FPV Frame Kit 420mm, 8mm arm compatible with O3 Air Unit/cadx Vista HD FPV system for freestyle RC FPV Drone
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Mitoot
Hign-concerned Chemical: None
Model Number: XL10 V6
Quantity: 1 pcs
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Remote Controller
Size: 10 "
Tool Supplies: Assembly Category
Four-wheel Drive Attributes: Assemblage
Use: Vehicles & Remote Control Toys
Recommend Age: 14+y
Origin: Mainland China
RC Parts & Accs: Principal Axis
For Vehicle Type: Airplanes
Material: Carbon Fiber
Brand: iFlight
It's
proud to announce the release of the XL series V6 Frames, XL10 V6 is a
10" size quadcopter, fit for the DJI O3 Air Unit system and Caddx
Digital FPV system on it.
The
main advantages of the XL series V6 are in the flight performance, and
the stronger and thick arms. The XL series V6 frames fly balanced
because of the true X configuration and wide stance. These main
changings make flight stable in the air.
Features:
Full 3K Carbon Fiber airframe
10" version fits popular 10" style propellers
Popular True-X configuration
Fits both 30.5x30.5 and 20x20 stacks
Compatible with DJI O3 Air Unit, Caddx Vista HD System, BLITZ Whoop 1.6W VTX
360° TPU protection and Antenna mounts
Specifications:
Wheelbase: 420mm
Frame Dimension: L297*W297*H35mm
Arm Thickness: 7mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Upper Plate Thickness: 3mm
Max Flight Stack Height: 19mm
Max VTX Height: 29mm
Motor Mounting：16x16mm/19x19mm
VTX Mounting：20*20 Φ2mm/ 25.5*25.5 Φ2mm/ 30.5*30.5 Φ3mm
Weight: 345±5 grams
Packing List:
1 x Nazgul XL10 V6 Frame
1 x Screw Bag
1 x TPU Set
1 x Battery anti-slip mat
2 x Battery straps (the color will be shipped randomly)
