SPECIFICATIONS

Brand Name: RADIOMASTER

Hign-concerned Chemical: None

Technical parameters: KV1100

Four-wheel Drive Attributes: Assemblage

Wheelbase: Upper Shell

Recommend Age: 14+y

RC Parts & Accs: RECEIVERS

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Origin: Mainland China

Material: Composite Material

Model Number: Ranger Nano

Upgrade Parts/Accessories: Adapter

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: Battery

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules. For more information on the Ranger series, please click here

Key Features

● High efficiency cooling system

● Wifi and Bluetooth support

● Packet rates up to F-1000Hz

● With the Nano connector, support radio.

Specification

● Item: Ranger Nano Module

● Regulatory Domain: ISM2400

● MCU: ESP32(main), ESP8285(aux,as ESP backpack)

● RF chip: SX1281IMLTRT

● Frequency Range: 2400 MHz - 2480 MHz

● Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

● Minimum receiver refresh rate: 25Hz

● Wifi Support: Yes

● Bluetooth support: Yes

● XT30 Power supply voltage: DC 6V - 16.8V

● Weight: 48g (with antenna) / 39g (without antenna)

● Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Package

● 1 * Ranger Nano Module

● 1 * T Antenna

Need receivers too? Purchase the Ranger Nano Combo, which includes the following items:

● 2 * RP1 ExpressLRS 2.4ghz Nano Receiver

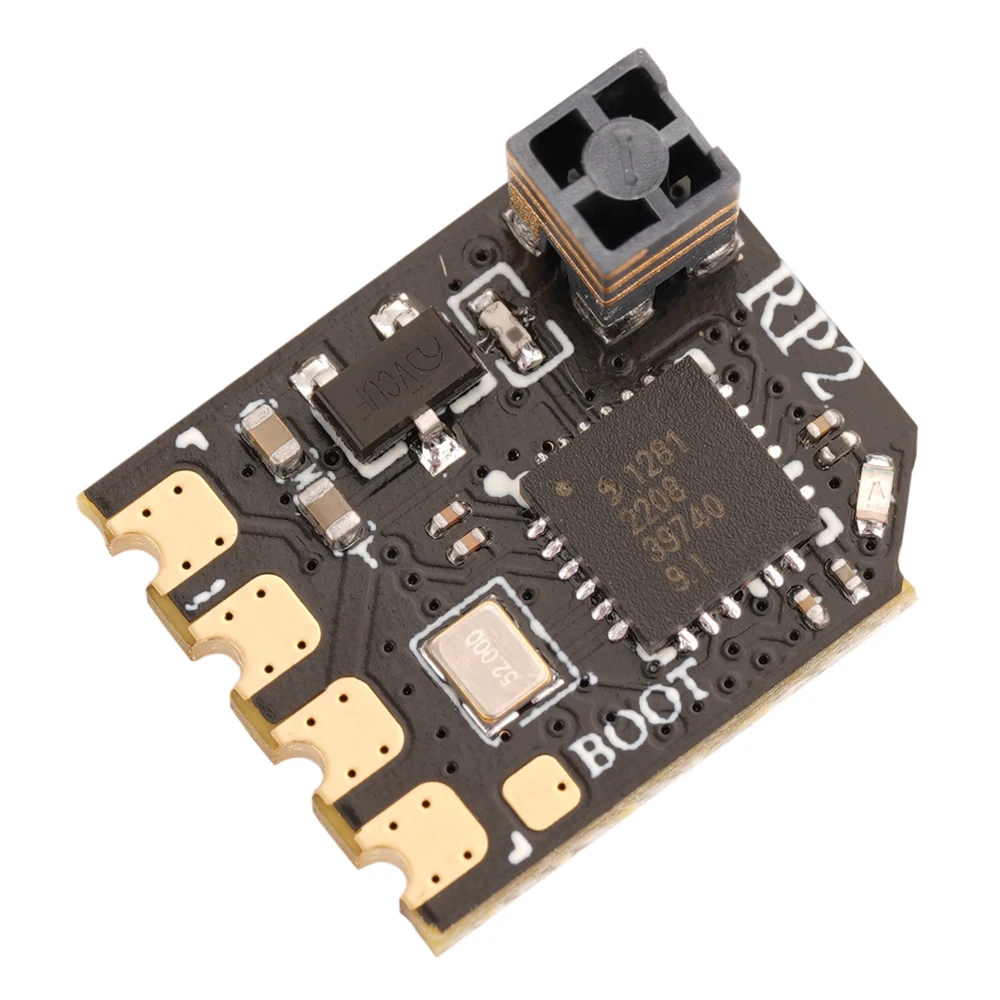

● 1 * RP2 ExpressLRS 2.4ghz Nano Receiver

We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
