Note：Mode 1-Right-hand throttle

Mode 2-Left hand throttle

★ CC2500 (standard) Version supports all CC2500 protocols

★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

★ CC2500LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT

★ ELRSLBT (Europe) Versionis pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

New to TX12 MKII

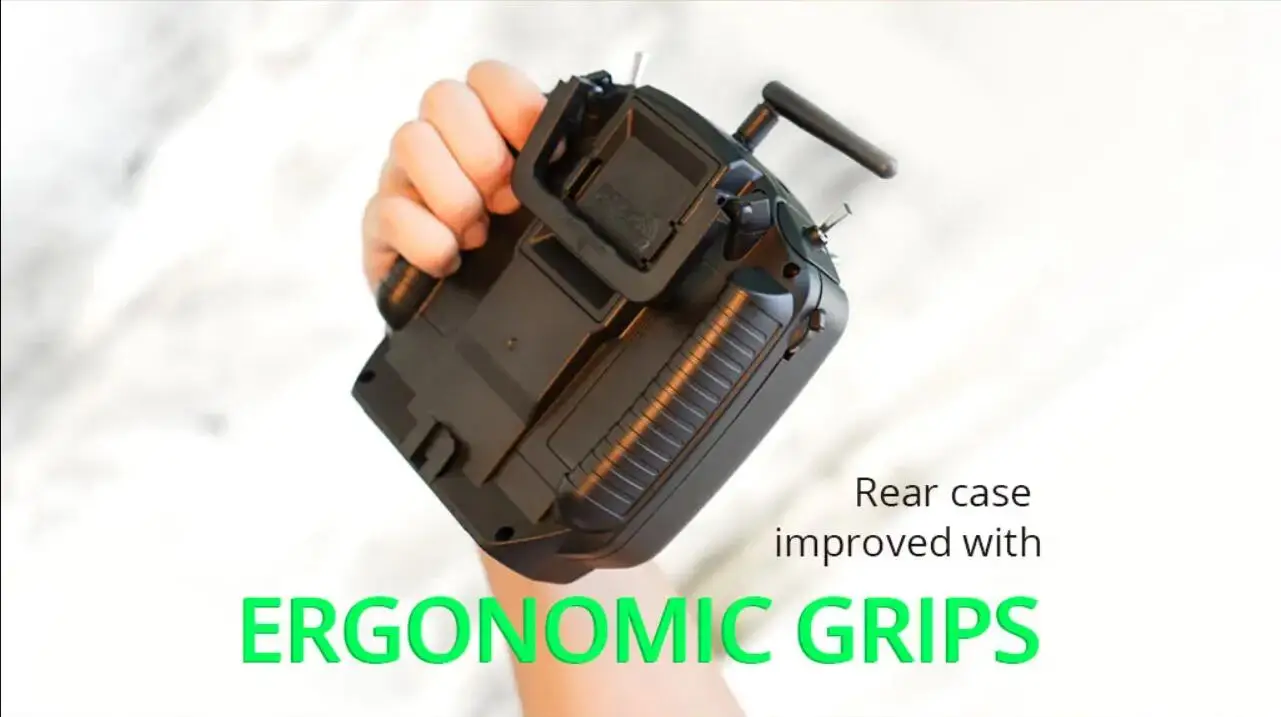

★ Updated rear case with comfortable grips

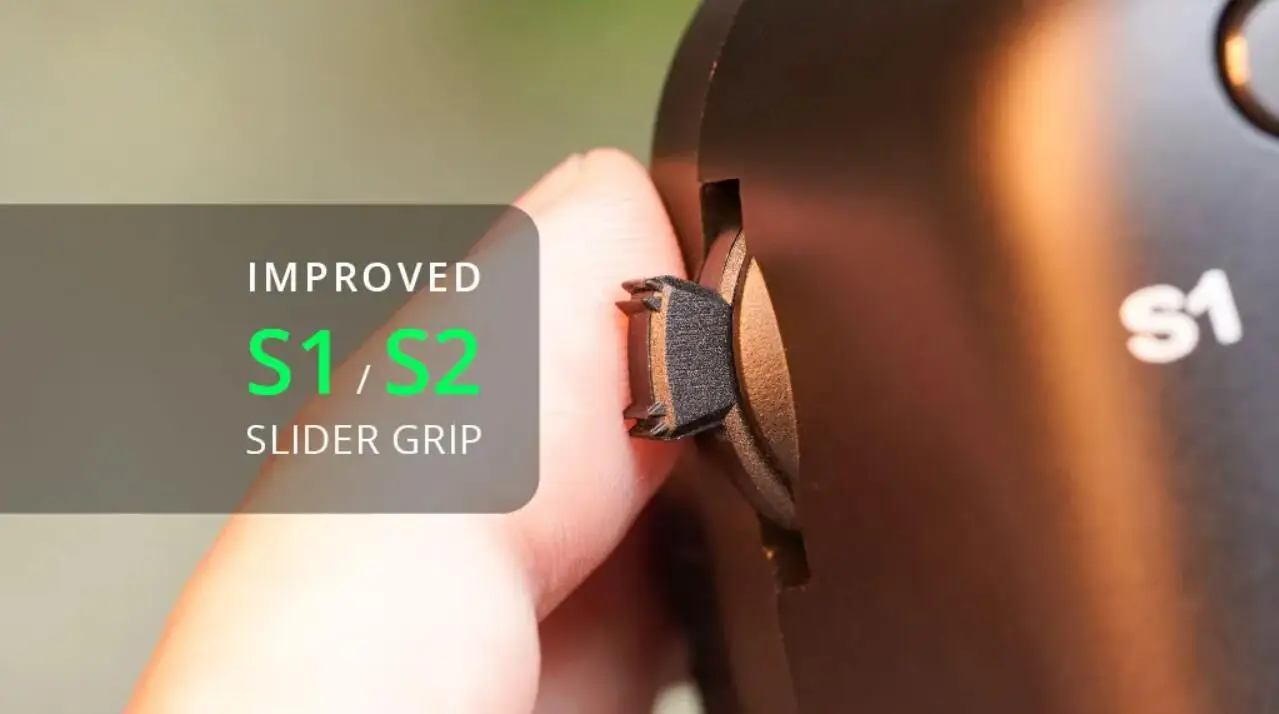

★ Improve S1 / S2 Grips
★ Improved USB-C QC 3.0 Charging
★ Updated main board design

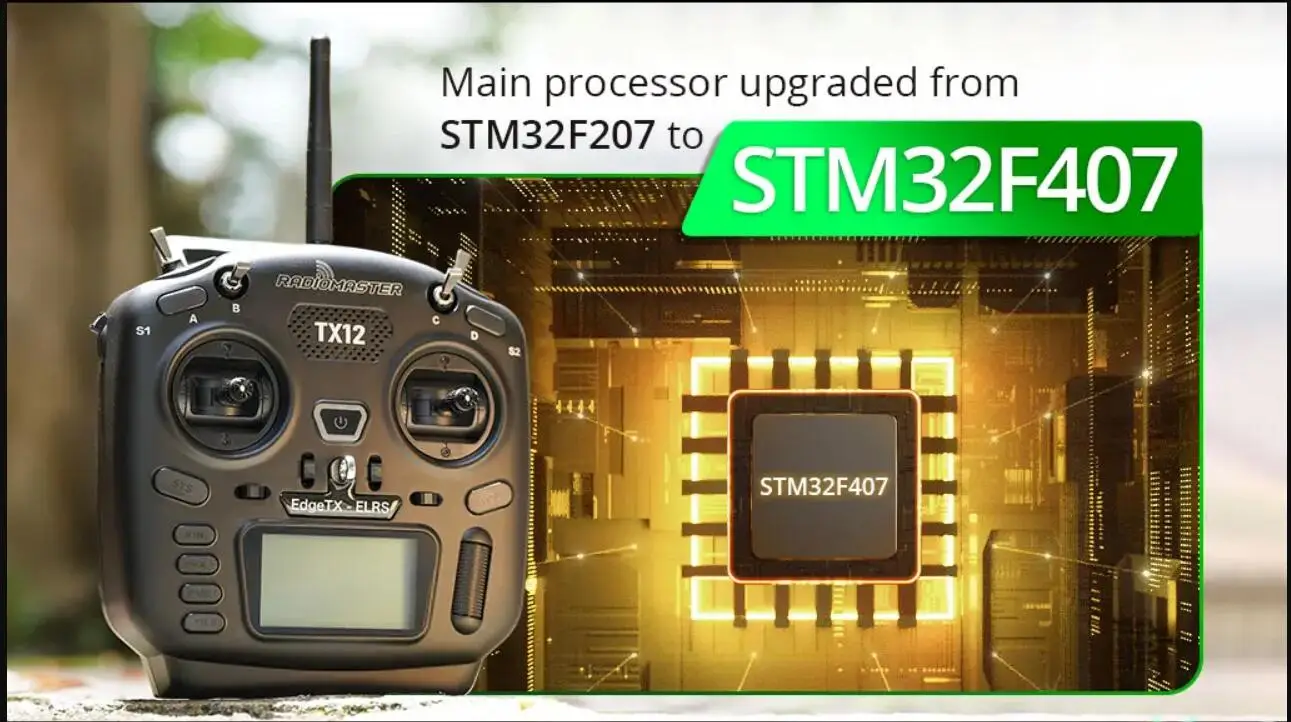

★ Updated MCU to STM32F407

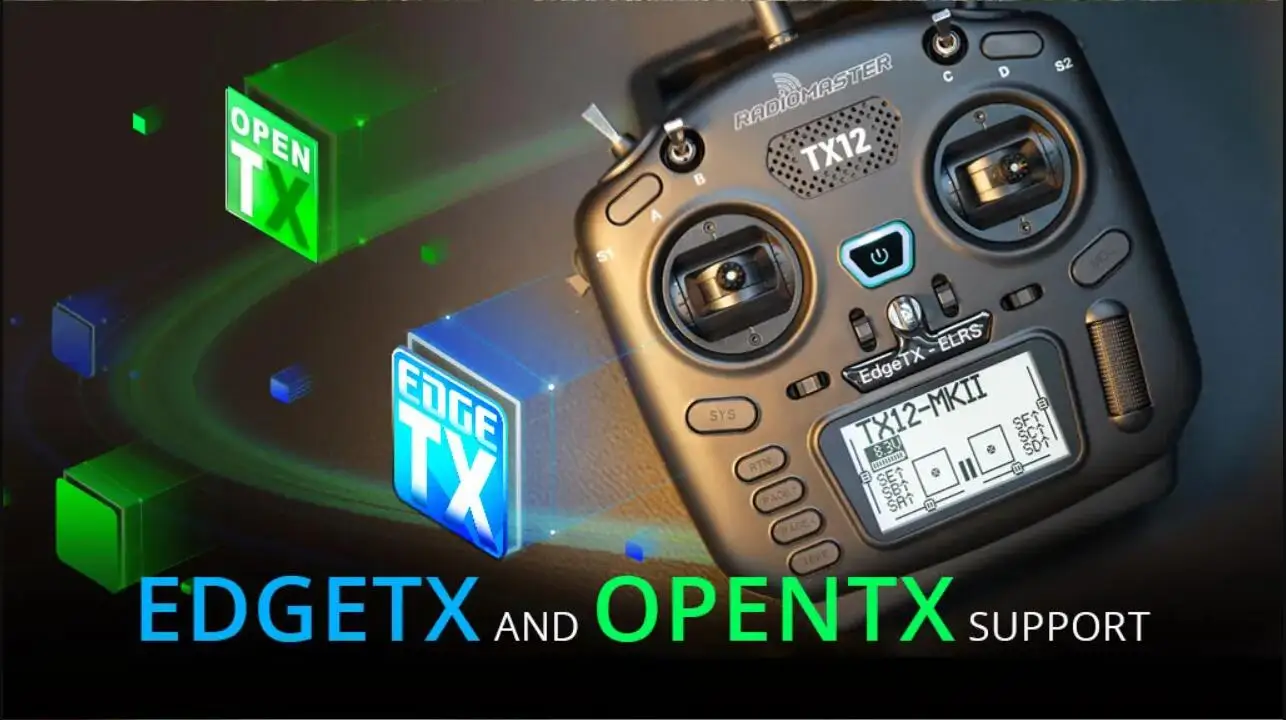

★ EdgeTX factory installed
★ SD Card included
★ Internal ExpressLRS RF Module

Specs:
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip option: ExpressLRS (ELRS)
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: 320mA@8.4V

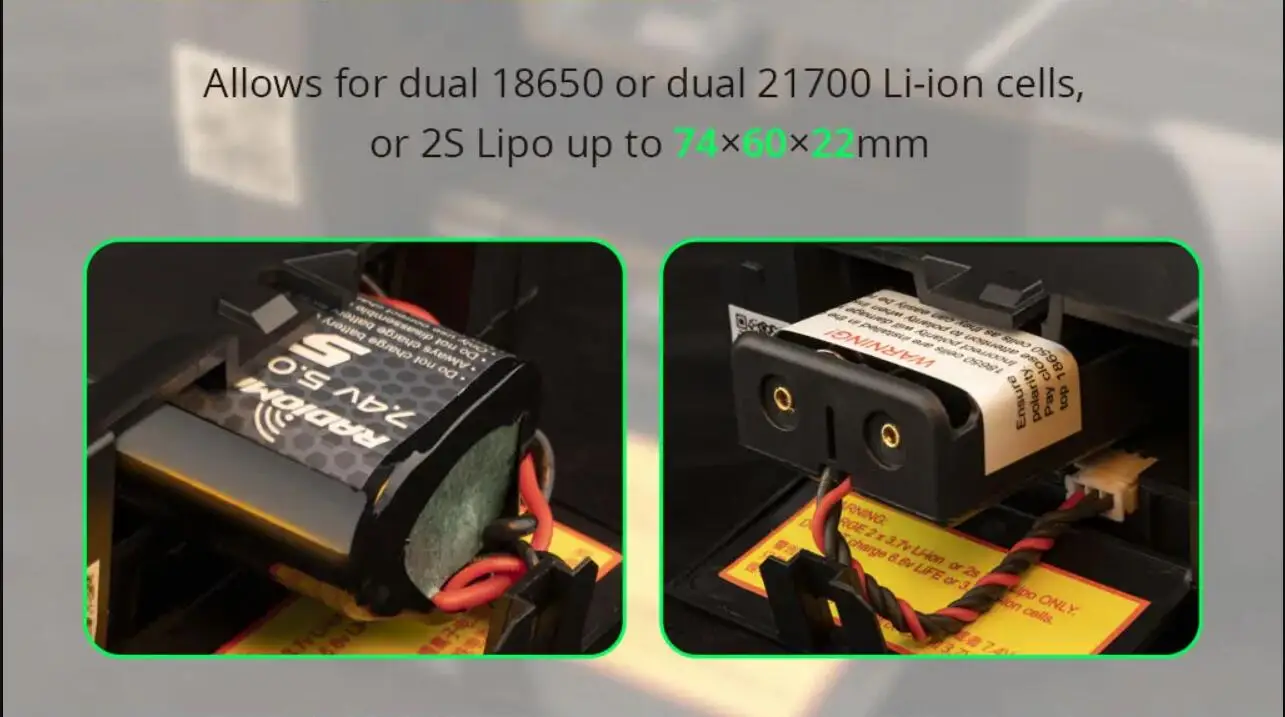

Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: EdgeTX (Transmitter) /  ExpressLRS (RF module)
Channels: Up to 16 (depending on receiver)
Display: 128*64 Monochrome LCD display

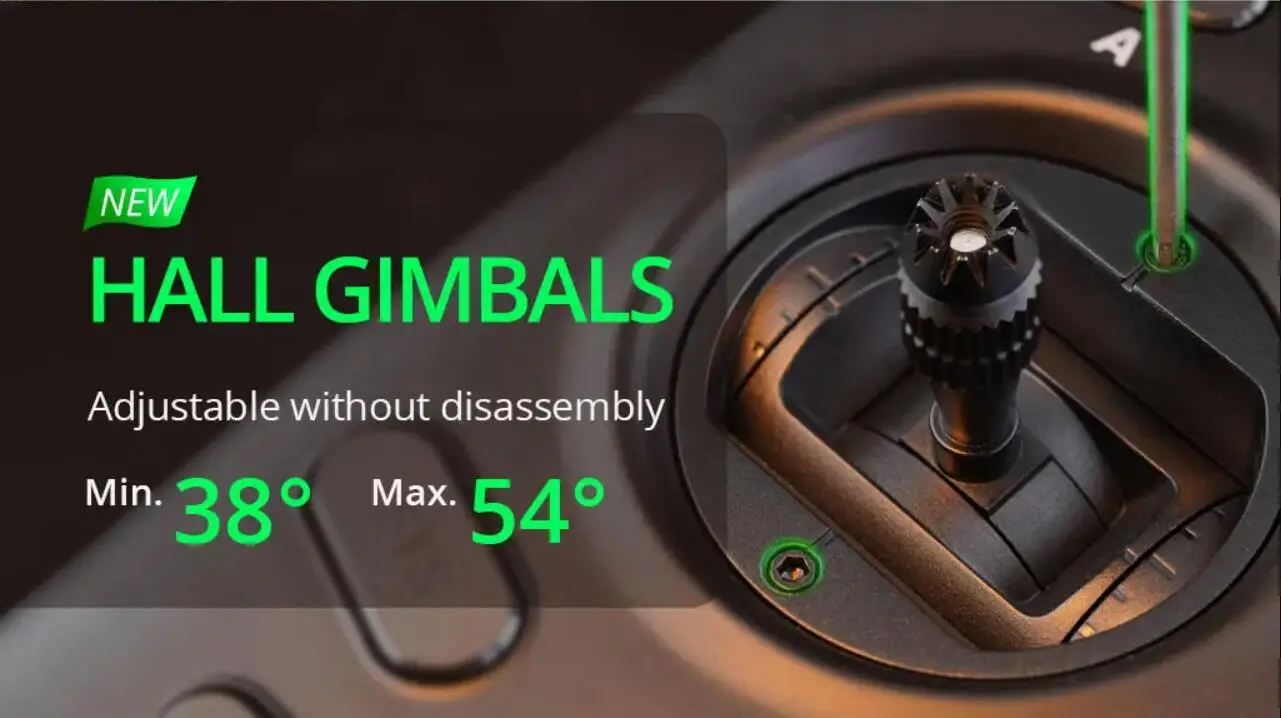

Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software

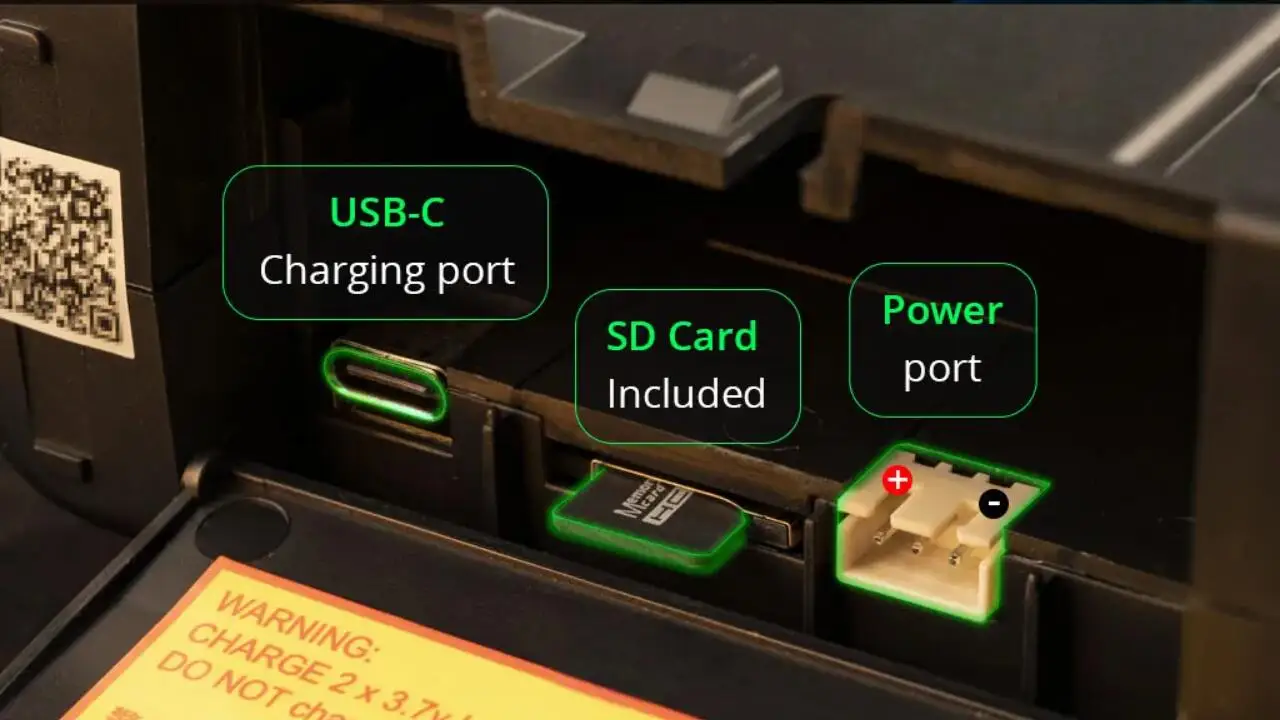

USB Charging: QC3 USB-C
SD Card: Included
