SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Transmitters

Size: L29mm*W29mm*H13 mm

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: Assembled class

Quantity: 1 pcs

Model Number: RunCam Link Wasp

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Specifications





Product Name:RunCam Wasp

Image Sensor:1/3"

LENS:FOV D:155° H:125° V:96°

Coaxial Cable:130 mm

Dimensions:L19mm*W19mm*H19mm

Shutter:Rolling Shutter

Net Weight:7.5g(With Cable)

Resolution:720P@120fps(4:3)



Product Name:RunCam Wasp Nano

Image Sensor:1/3"

LENS:FOV D:160° H:127° V:92°

Coaxial Cable:80 mm

Dimensions:L18mm*W14mm*H18mm

Shutter:Rolling Shutter

Net Weight:6g(With Cable)

Resolution:720P@120fps(4:3)



Product Name:RunCam Link

Frequency:5.725-5.850 GHz

Max. Distance:FCC/SRRC:<4 km

Power:7.4-26.4 V@ 4-9W

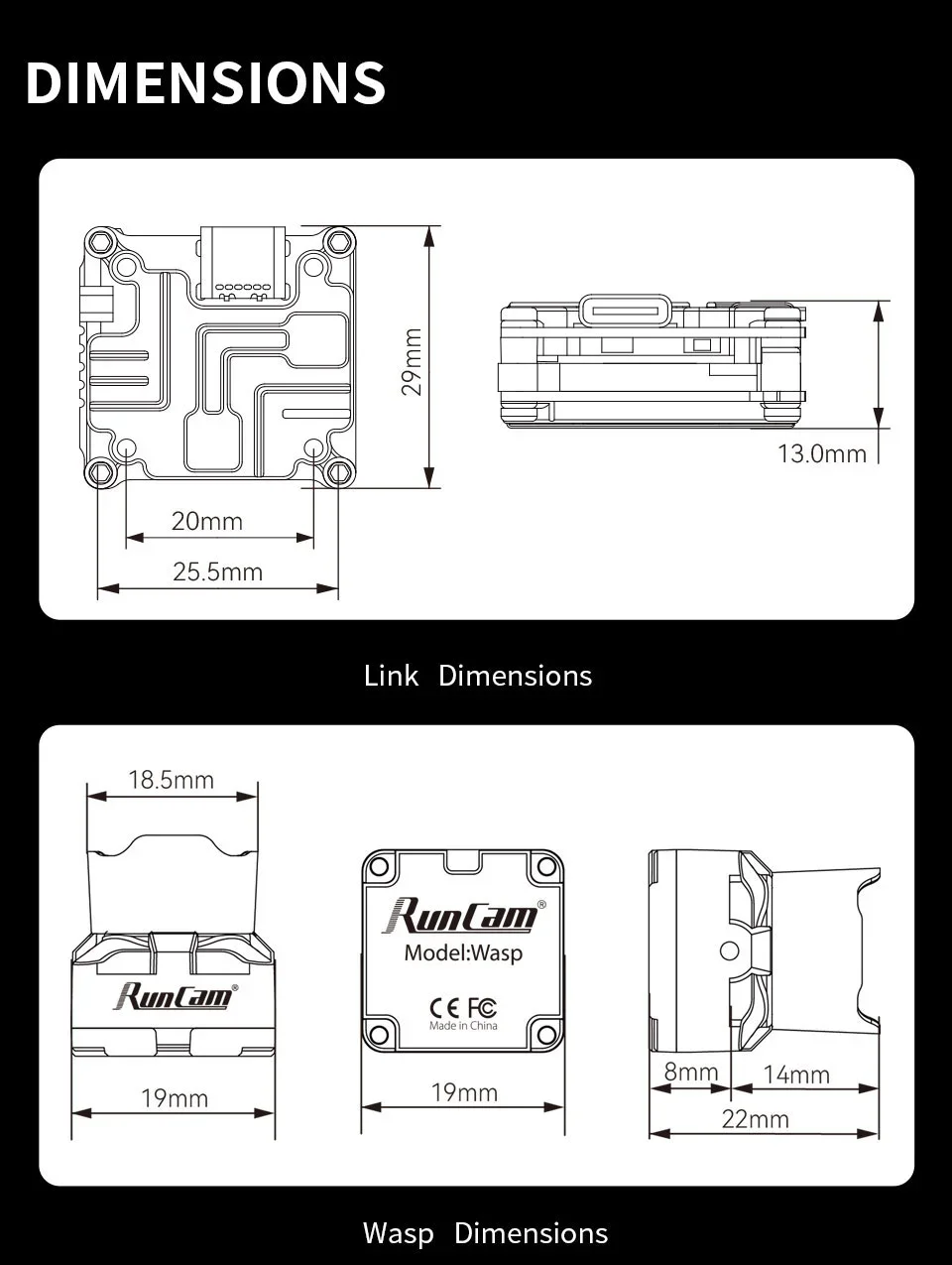

Dimensions:L29mm*W29mm*H13 mm

Net Weight:19.5 g



Feature:







UP TO 8 CHANNELS FOR 8 DRONES

The HD transmission system of the FPV Air Unit can allow up to eight drones

to fly simultaneously. Each operator has an exclusive channel to reduce

cross-interference to provide an optimal immersive experience.







D-J-I FPV REMOTE

CONTROLLER COMPATIBLE

Users can connect their D-J-I FPV Remote Controller without

having to purchase additional receivers. This reduces costs

and is easy to setup for every pilot.



ATTENTION:

PLEASE UPGRADE FIRMWARE OF LINKVISTA TO THE LATEST VERSION TO SUPPORT THE WASP CAMERA

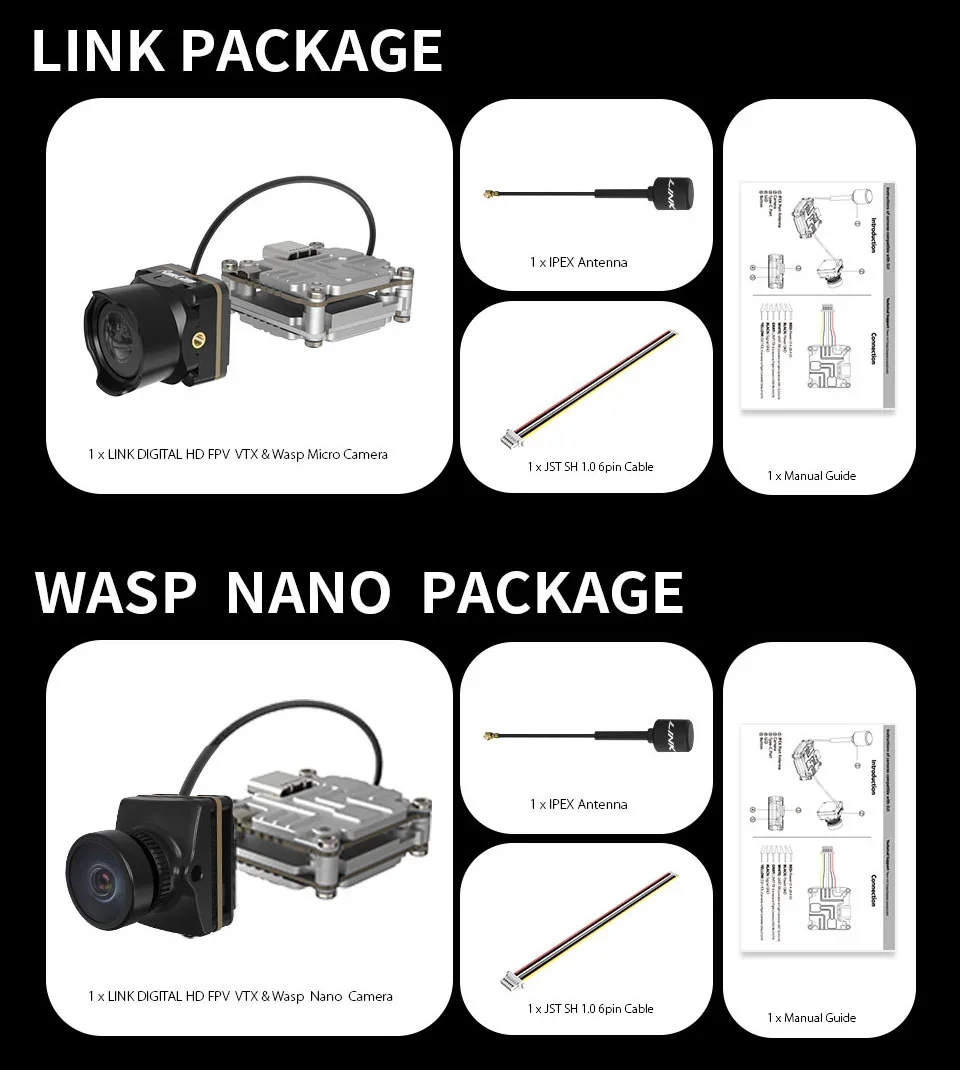

Package list:



Only Wasp Camera Package list:

1x Wasp Micro Camera





Only Wasp Nano Package list:

1x Wasp Nano Camera



Link Wasp Set Package list:



1x LINK DIGITAL HD FPV VTX & Wasp Micro Camera

1x IPEX Antenna

1x JST SH 1.0 6Pin Cable

1x Manual



Link Wasp Nano SetPackage list:

1x LINK DIGITAL HD FPV VTX & Wasp Nano Camera

1x IPEX Antenna

1x JST SH 1.0 6Pin Cable

1x Manual

RUNCAM WASP MICRO CAMERA:

EXTENDED 155° FOV COMPARED TO PREVIOUS GENERATIONS:
