SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Flight Controller

Size: 31*30mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: F7 Flight Controller

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembly Category

Quantity: 1 pcs

Technical parameters: KV1100

Model Number: T-MOTOR MINI Racer F7 Flight Controller

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

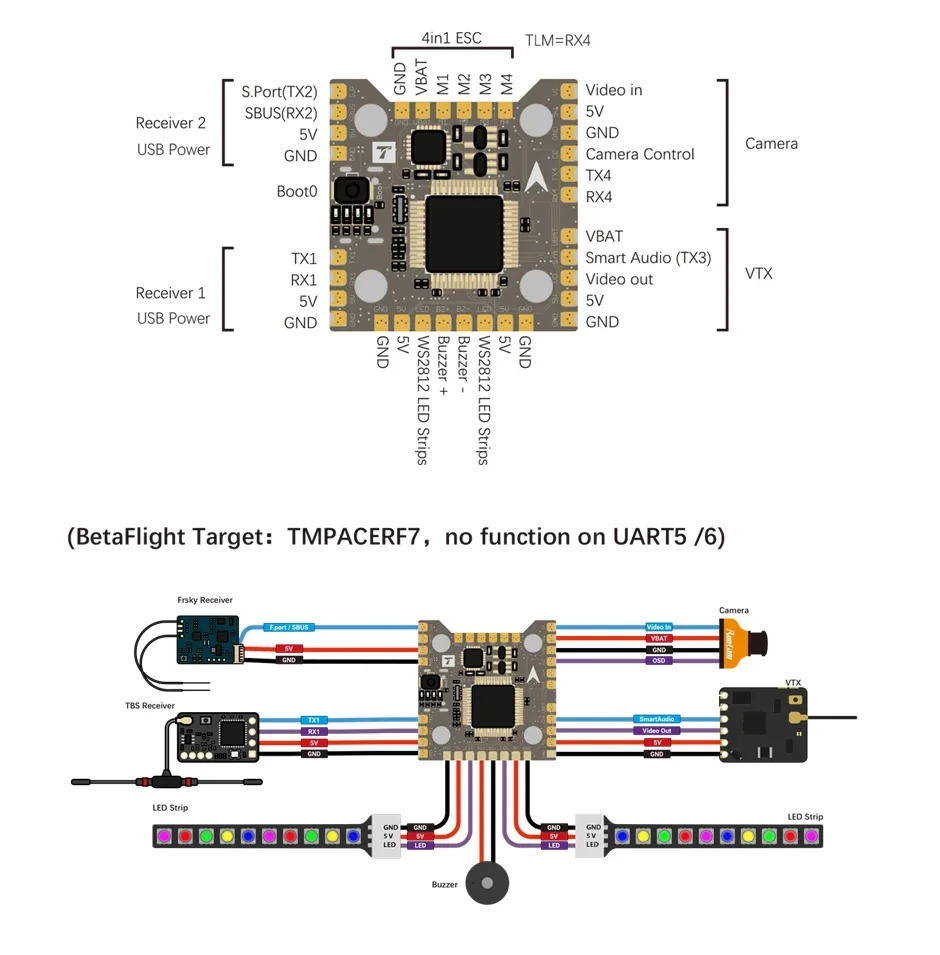

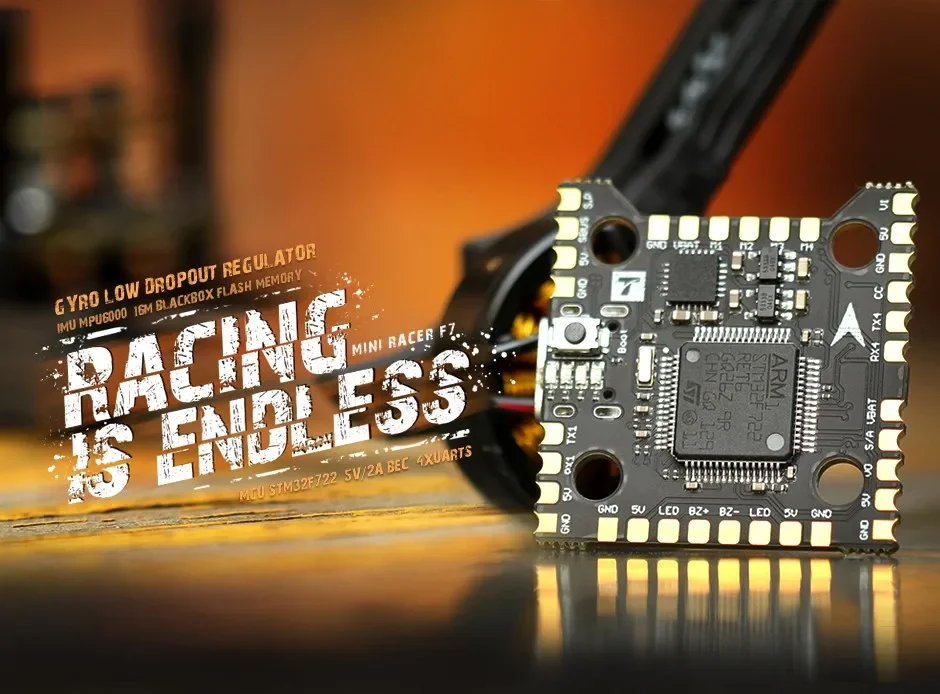

T-MOTOR MINI Racer F7 Flight Controller

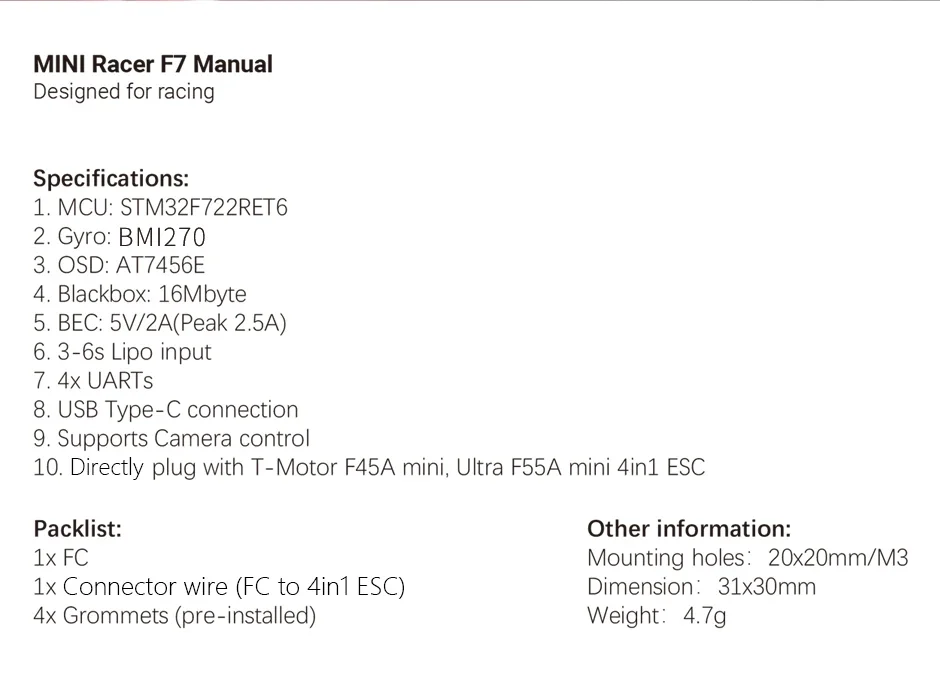

Specifications
1:MCU:STM32F722RET6
2:Gyro:BMI270
3:OSD:AT7456E
4:Blackbox:16Mbyte
5:BEC:5V/2A(Peak 2.5A)
6:3~6S Lipo input
7:4 x UARTs
8:USB Type -C connection
9:Supports Camera control

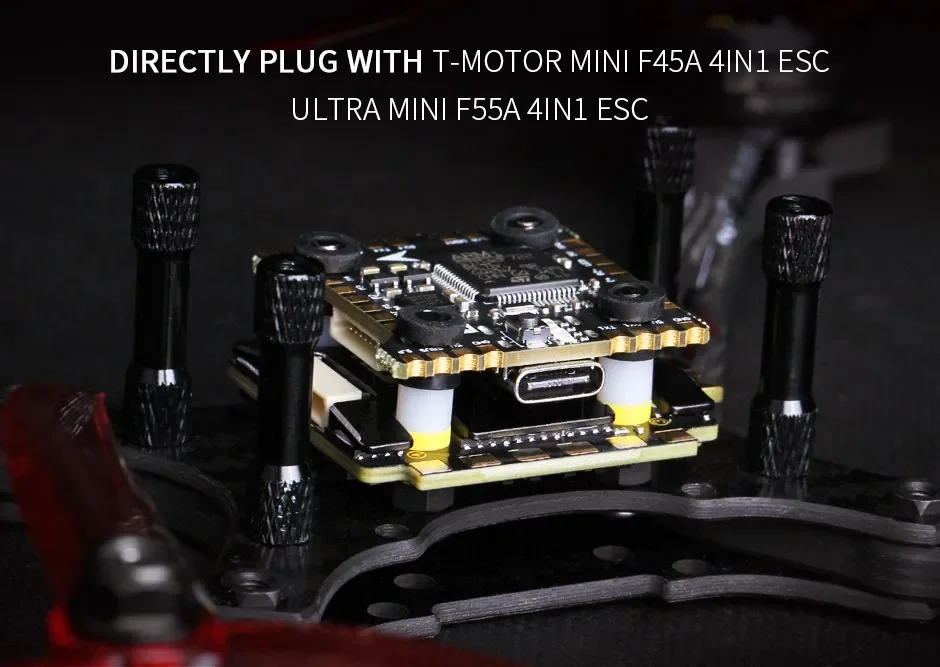

10:Directly plug with T-motor F45A MINI,Ultra 55A mini 4in1 ESC

Mounting holes:20*20mm/M3
Dimension:31*30mm
Weight:4.7g

Packlist:
1x FC
1x Connector wire(FC to 4in1 ESC)
4x Grommets(pre-installed)
